| Inspection |
| 1. |
Remove the IMS control switch connector (A).
|
| 2. |

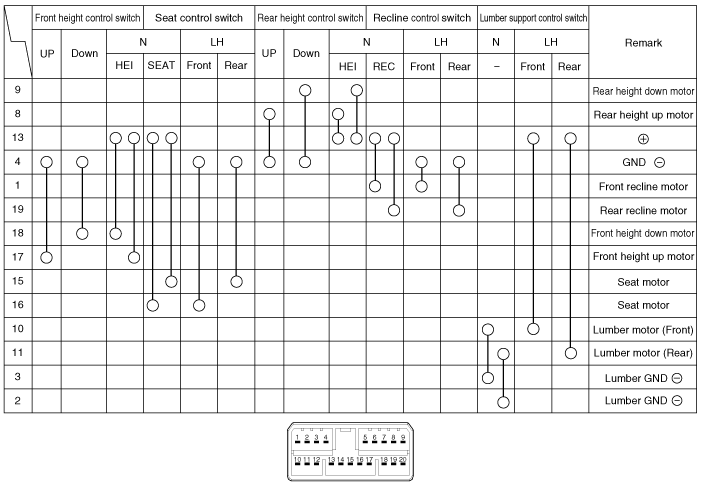

With the IMS control switch in each position, make sure that
continuity exists between the terminals below. If continuity is not as
specified, replace the IMS control switch.
Driver Power Seat Control Switch (For IMS)
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the switch (A) from seat side cover.
|
| 3. |
Remove the seat side cover (A).
(Refer to Body - "Front Seat")
|
| 4. |
Disconnect the IMS control switch connector (A).
|
| 5. |
Loosen the IMS control switch (A) mounting screws (3EA).
|
| Installation |
|
| 1. |
Connect the connectors and reassemble the IMS control switch. |
| 2. |
Reassemble the seat side cover. |
Circuit diagram
