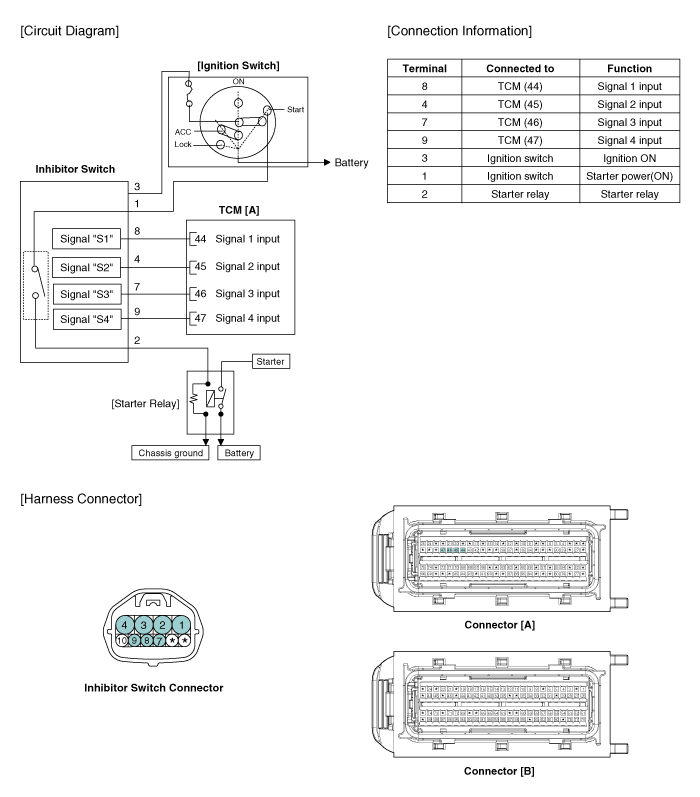

Circuit Diagram

Inhibitor Switch Specifications
Specifications ▷ Type: Combination of output signals from 4 terminals ▷ Specifications Power supply (V)12Output typePin to Pin ▷ Signal Code Table  PP-RRR-NNN-DDS112V12V00000S2012 ...

Inhibitor Switch Repair procedures
Inspection     • Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Power Circuit Ins ...
