Kia Cadenza YG: Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting

Kia Cadenza YG 2016-2021 Service Manual / Engine Control / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Troubleshooting

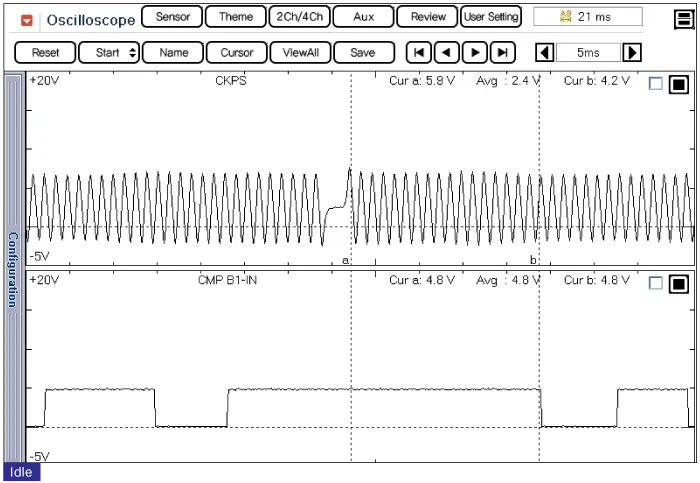

Wave Form

    Specification ItemSpecificationCoil Resistance (Ω)500 ~ 620 [20°C(68°F)]

    Circuit Diagram
