Kia Cadenza YG: Timing System / Drive Belt Tensioner Components and Components Location

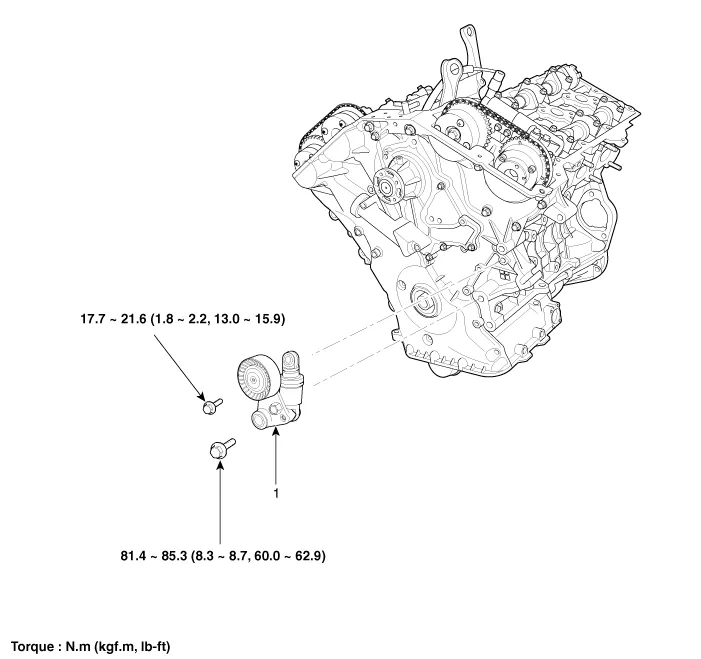

| Components |
| 1. Drive belt tensioner |
Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt idler (A). Tightening torque : 53.
Removal and Installation 1. Remove the drive belt idler. (Refer to Timing System - "Idler") 2. Remove the drive belt auto tensioner (A). Tightening torque Bolt (B) : 81.
