Kia Cadenza YG: Airbag Module / Driver Airbag (DAB) Module and Clock Spring Components and Components Location

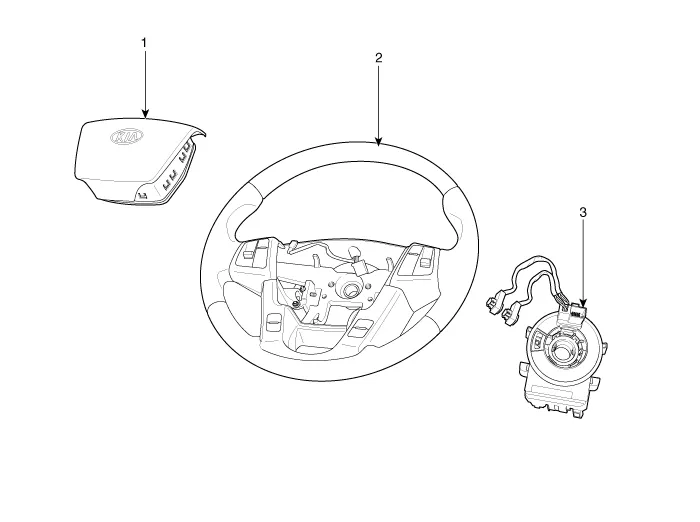

| Components |
| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring |
Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash occurs.
Removal 1. Set the front tires straight-ahead before removing the steering wheel. If the steering wheel and the front tires are not set straight ahead together, it affects the number of circulation of steering wheel and the cable inside the clock spring is possible to be damaged.
