Kia Cadenza YG: Parking Brake System / Electric Parking Brake (EPB) Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Brake System / Parking Brake System / Electric Parking Brake (EPB) Components and Components Location

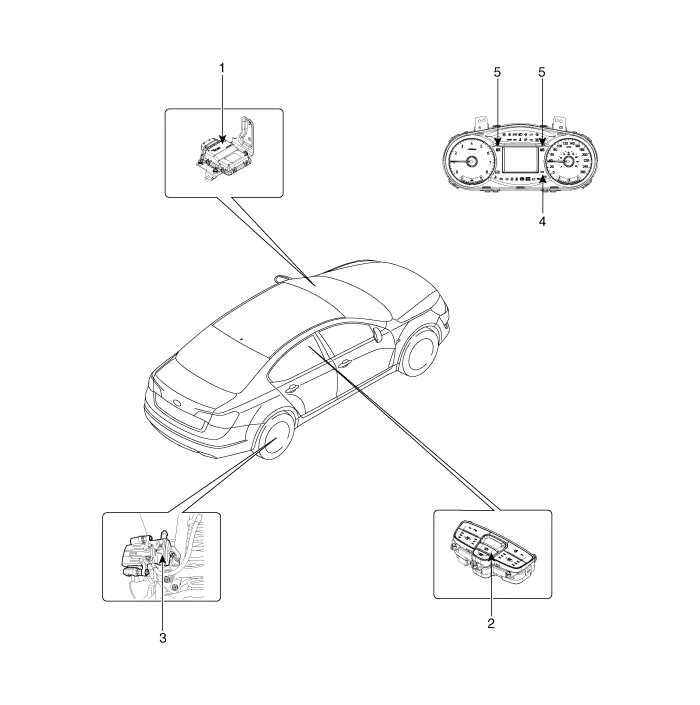

Components

1. EPB Unit
2. EPB Switch
3. Brake Caliper
4. EPB Warning Lamp
5. AUTO HOLD Lamp
