Kia Cadenza YG: General Information / Identification Numbers

Kia Cadenza YG 2016-2021 Service Manual / General Information / Identification Numbers

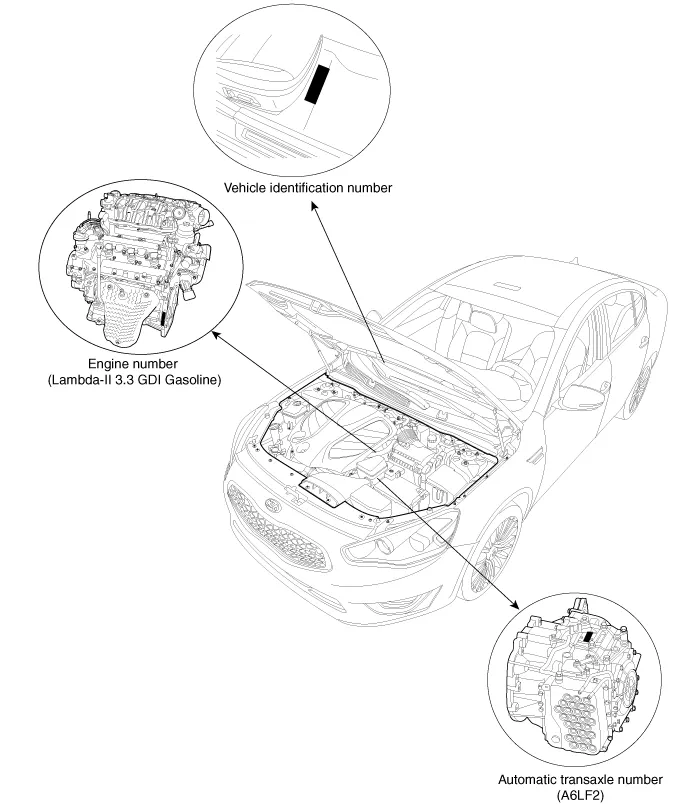

Identification Number

Identification Number Description Vehicle Identification Number

1. World Manufacturer Identifier (WMI) - KNA : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle) - KNC : Commercial vehicle (Van) - KND : MPV/SUV/RV (For U.S.A, Canada, Mexico) - KNH : Van
2. Vehicle line - L : CADENZA
3. Model & Series - L : Low grade (L) - M : Middle-Low grade (GL) - N : Middle grade (GLS, JSL, TAX) - P : Middle-High grade (HGS) - R : High grade (TOP)
4. Body/Cabin type, Gross Vehicle Weight Rating KNA - 1 : Limousine - 2 : Sedan - 2 door - 3 : Sedan - 3 door - 4 : Sedan - 4 door - 5 : Sedan - 5 door - 6 : Coupe - 7 : Convertible - 8 : Wagon - 9 : Commercial Van - 0 : Pick-Up KNC (Commercial vehicle / Van) Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China - X : Standard Cabin / Semi-Bonnet - Y : Double Cabin / Bonnet - Z : Super Cabin / Box For U.S.A, Canada, Mexico, Gulf Cooperation Council, China - 2 : Standard Cabin Class-H 4×2 - 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2 - 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4 - 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2 - 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4 - 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2 - 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4 - 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2 - 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4 - A : Super Cabin Class-E 4×2 / Box Class-E 4×2 - B : Super Cabin Class-E 4×4 / Box Class-E 4×4 - C : Super Cabin Class-F 4×2 / Box Class-F 4×2 - D : Super Cabin Class-F 4×4 / Box Class-F 4×4 KND - 1 : Wagon 4×2 Class-A - 2 : Wagon 4×2 Class-B - 3 : Wagon 4×2 Class-C - 4 : Wagon 4×2 Class-D - 5 : Wagon 4×2 Class-E - 6 : Wagon 4×2 Class-F - 7 : Wagon 4×2 Class-G - A : Wagon 4×4 Class-A - B : Wagon 4×4 Class-B - C : Wagon 4×4 Class-C - D : Wagon 4×4 Class-D - E : Wagon 4×4 Class-E - F : Wagon 4×4 Class-F - G : Wagon 4×4 Class-G KNH - 1 : Box - 2 : Bonnet - 3 : Semi-Bonnet
5. Restraint system, Brake system KNA, KND Except U.S.A, Canada, Mexico - 0 : Both side - None - 1 : Both side - Active belt - 2 : Both side - Passive belt For U.S.A, Canada, Mexico
Code Seat belt Front air bag Knee air bag Side air bag Curtain air bag
Driver''s Passenger''s Driver''s Passenger''s 1st row 2nd row 3rd row 1st row 2nd row 3rd row
A ○ ○ ○ × × ○ × × ○ ○ ×
B ○ ○ ○ × × × × × × × ×
C ○ ○ ○ × × ○ × × ○ ○ ○
D ○ ○ ○ × × ○ ○ × ○ ○ ×
E ○ ○ × × × × × × × × ×
F ○ ○ ○ × × ○ × × × × ×
J ○ ○ ○ ○ × ○ ○ × ○ ○ ×
L ○ ○ ○ ○ × ○ × × ○ ○ ×
N ○ × × × × × × × × × ×
H ○ ○ ○ ○ × ○ × × ○ ○ ○

KNC, KNH Except U.S.A, Canada, Mexico - 7 : Hydraulic brake system - 8 : Pneumatic brake system - 9 : Mixed brake system For U.S.A, Canada, Mexico - X : Hydraulic brake system - Y : Pneumatic brake system - Z : Mixed brake system
6. Engine type - 7 : Gasoline engine 3.3 GDI (Lambda-II)
7. Check digit or Driver’s side & Transmission Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen - A : LHD & MT - B : LHD & AT - C : LHD & MT+Transfer - D : LHD & AT+Transfer - E : LHD & CVT - F : LHD & Decelerator - G : LHD & DCT - L : RHD & MT - M : RHD & AT - N : RHD & MT+Transfer - S : RHD & AT+Transfer - T : RHD & CVT - U : RHD & Decelerator - V : RHD & DCT For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen - Check digit : 0 ~ 9, ×
8. Model year - D : 2013, E : 2014, F : 2015, G : 2016 …
9. Plant of production - 5 : Hwasung (Korea) - 6 : Sohari (Korea) - 7 : Kwangju (Korea) - T : Seosan (Korea)
10. Vehicle production sequence number - 000001 ~ 999999
Engine Number

1. Engine fuel - G : Gasoline
2. Engine range - 6 : 4 cycle 6 cylinder
3. Engine development order and capacity - D : Lambda engine (Gasoline)
4. Engine Capacity - H : 3342cc (Lambda-II GDI engine)
5. Production year - D : 2013, E : 2014, F : 2015, G : 2016 …
6. Plant of production - A : Asan (Korea) - B : Beijing (China) - H : Hwasung (Korea) - K : Montgomery (U.S.A) - M : Chennai (India) - P : Poseung (Korea) - S : Sohari (Korea) - T : Izmit (Turkey) - U : Ulsan (Korea) - W : Shandong (China) - Z : Zilina (Slovakia) - 1 : Yancheng (China)
7. Engine production sequence number - 000001 ~ 999999
Transaxle Number Automatic

1. Model - BA : A6LF2
2. Production year - D : 2013, E : 2014, F : 2015, G : 2016 …
3. Final gear ratio - Q : 3.041
4. Detailed classification - H : Lambda-H 3.3 GDI
5. Plant of production - 2 : HPT Plant 2 - 4 : HPT Plant 4 - U : Ulsan Plant 1 - S : Ulsan Plant 2 - H : Hwasung
6. Transaxle production sequence number - 000001~999999
Paint Code
Code Color
ABP Aurora Black Pearl
ABT Platinum Graphite
K3N Golden Beat
LC Light Graphite
STM Satin Metal
SWP Snow White Pearl
3D Bright Silver



    Important Safety Notice Proper service methods and repair procedures are essential for safe, reliable operation of all motor vehicles as well as personal safety of the operator.

    Warning And Caution Labels   1. Radiator cap caution 2.
