Kia Cadenza YG: Body Dimensions / Interior Body Repair

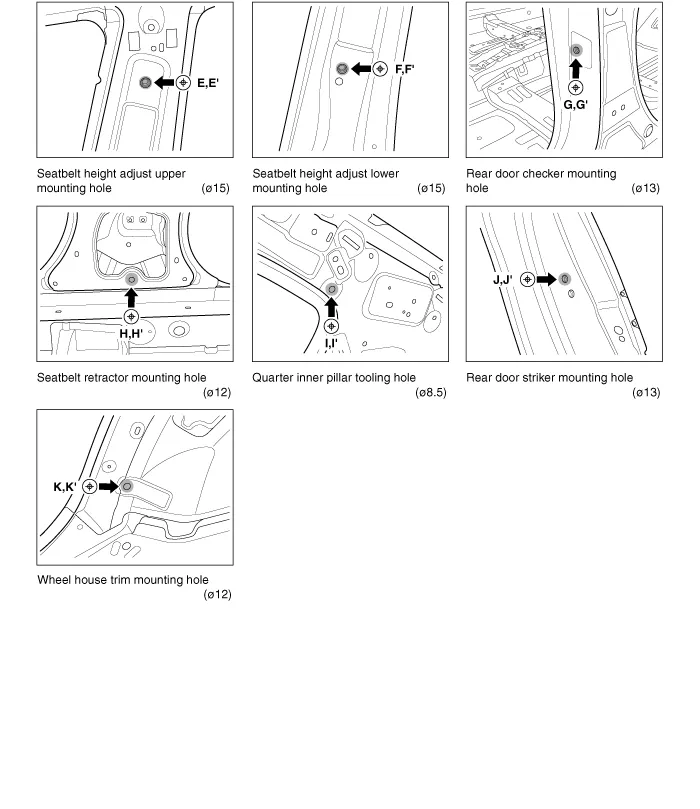

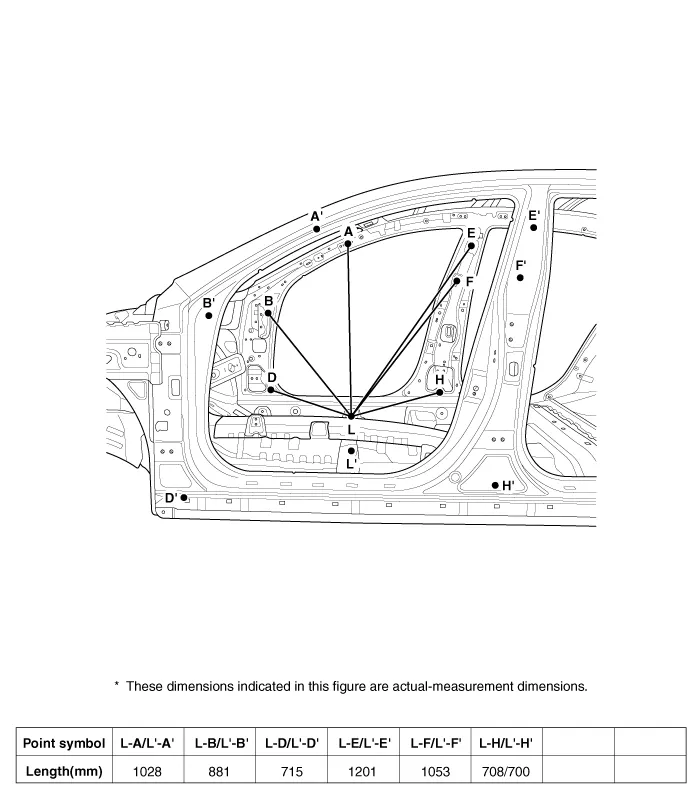

Interior A

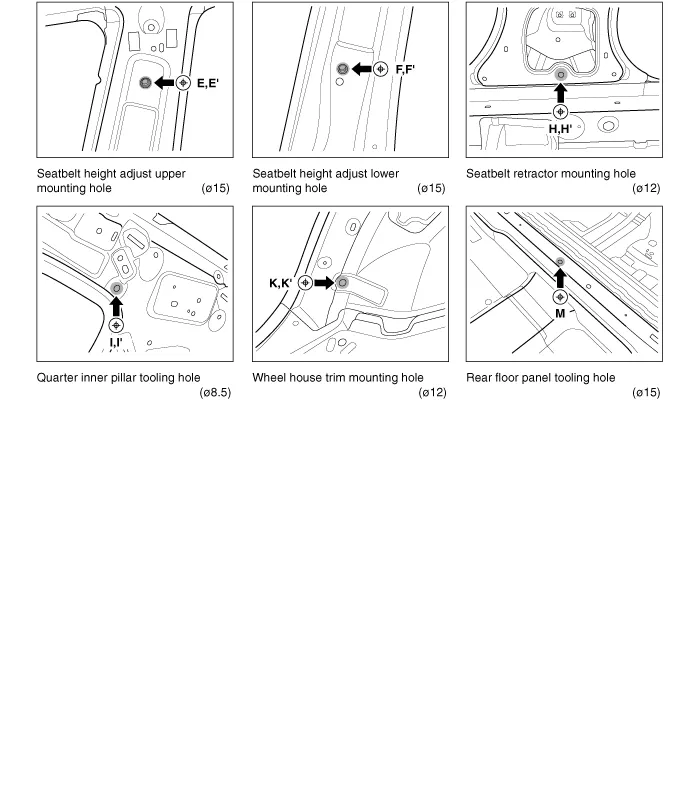

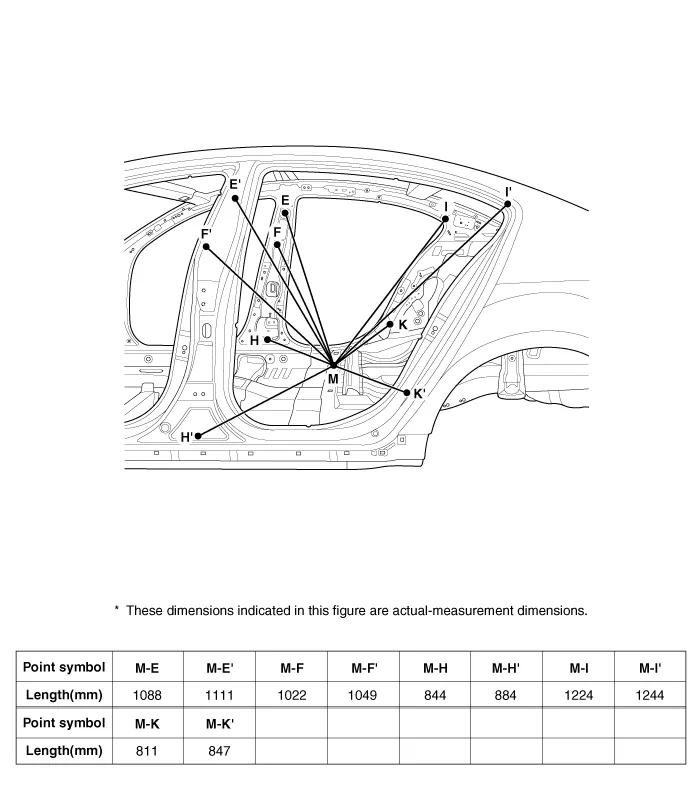

Interior B

Interior C

Interior D

    Side Body A Side Body B Side Body C Side Body D
