Kia Cadenza YG: Body Dimensions / Side Body Body Repair
Kia Cadenza YG 2016-2021 Service Manual / Body (Interior and Exterior) / Body Dimensions / Side Body Body Repair

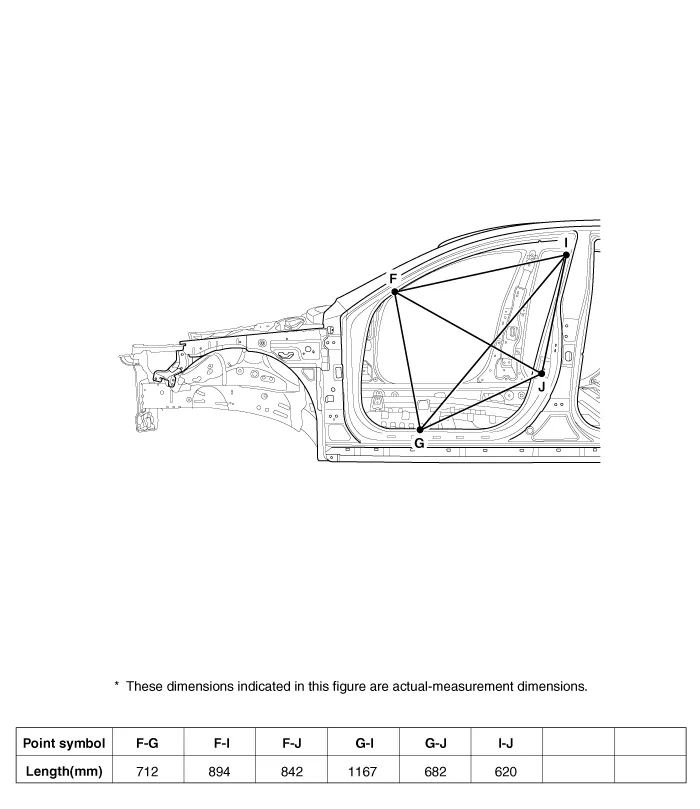

| Side Body A |

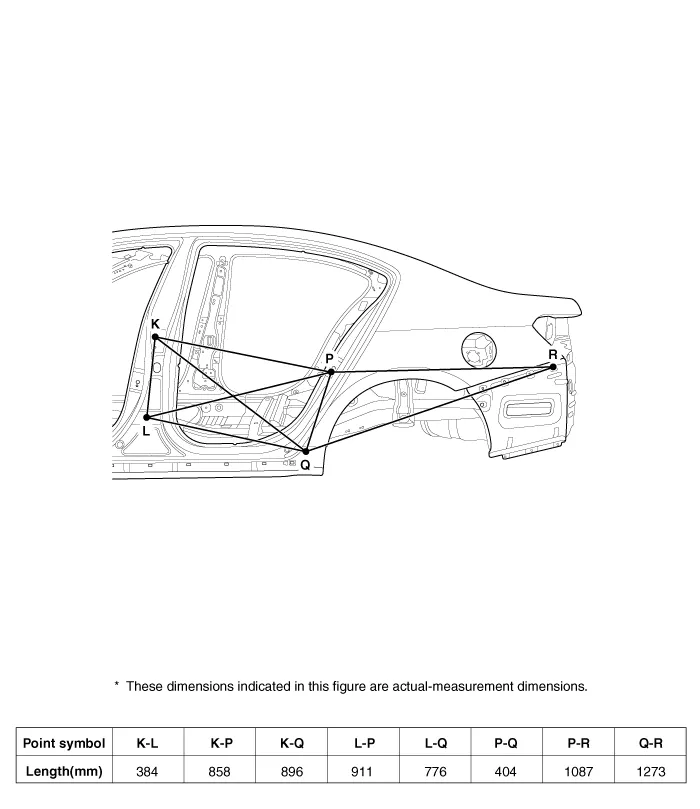

| Side Body B |

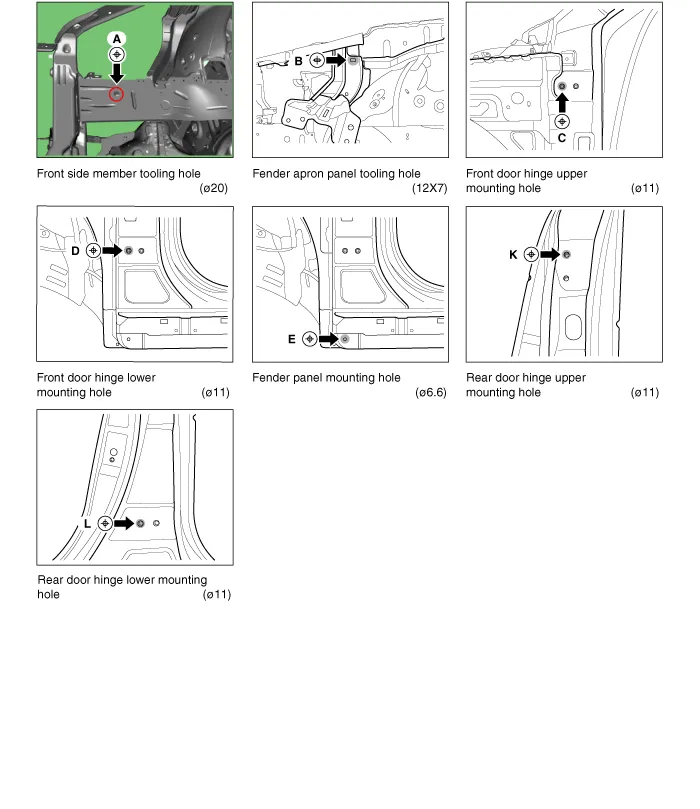

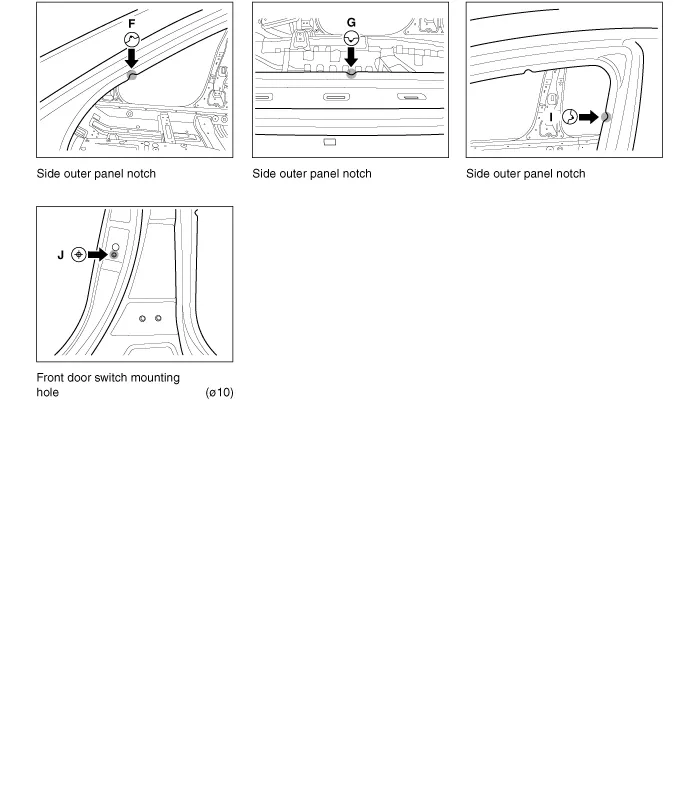

| Side Body C |

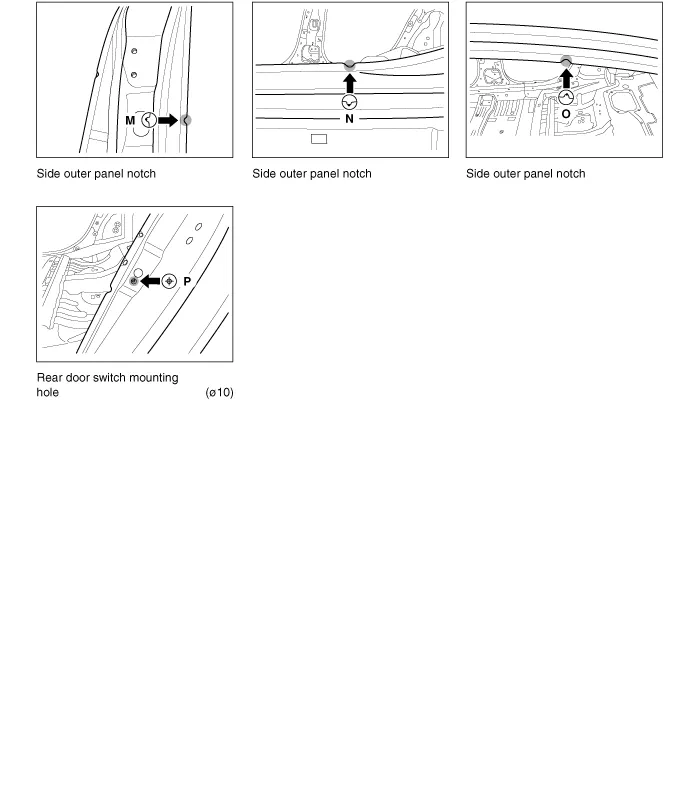

| Side Body D |
Front Body A Front Body B Front Body C Front Body D
Interior A Interior B Interior C Interior D
