Kia Cadenza YG: SRSCM / Occupant Detection System (ODS) Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Restraint / SRSCM / Occupant Detection System (ODS) Components and Components Location

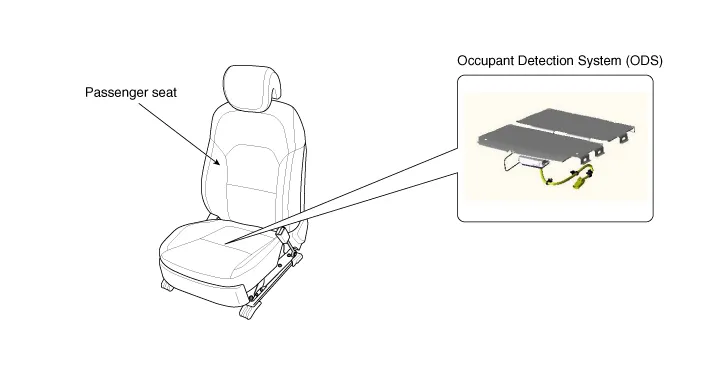

Components

    Description In order to make normal activation of airbag system, SRSCM detects DTC(s) for the Passenger side Body Detection System. If the seat is occupied, Body sensor detects how measuring electrostatic capacity and send signal to SRSCM via CAN.

    Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2. Remove the front passenger seat assembly.
