Troubleshooting

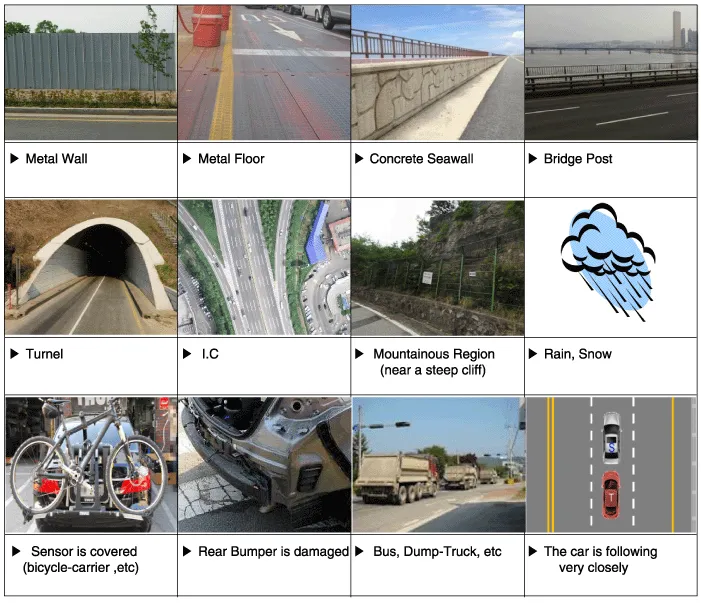

Examples of False-Alarm Occurrence from system characteristics (It’s not a problem)
–
Characteristics of EM Wave : EM Waves are reflected against all material and especially metal very well. Reflections of EM Waves are varies with the shape of object. (※ EM : Electro Magnetic)
–
Radar Sensor : Radar Sensor sense the car by 24GHz echo signal.
–
Special enviroment make the ''False-Alarm'' occurrence because of EM waves.
