Kia Cadenza: Limitations of the system / Lane changing
.jpg)

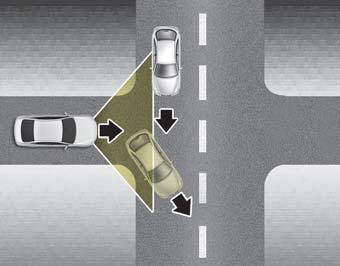

- A vehicle which moves into your
lane from an adjacent lane cannot
be recognized by the sensor until it
is in the sensor's detection range.
- The sensor may not detect immediately
when a vehicle cuts in suddenly.
Always pay attention to the
traffic, road and driving conditions.
- If a vehicle which moves into your
lane is slower than your vehicle,
your speed may decrease to maintain
the distance to the vehicle
ahead.
- If a vehicle which moves into your
lane is faster than your vehicle,
your vehicle will accelerate to the
selected speed.
.jpg)

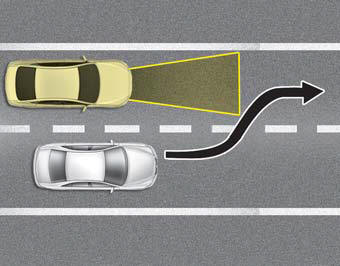

- Your vehicle may accelerate when
a vehicle ahead of you disappears.
- When you are warned that the
vehicle ahead of you is not detected,
drive with caution.
During uphill or downhill driving,
Smart Cruise Control may not
detect a moving vehicle in your
lane, and cause your vehicle to
accelerate to the set speed. Also,
the vehicle speed ...
Some vehicles ahead in your lane
cannot be recognized by the sensor
as follows:
- Narrow vehicles such as motorcycles
or bicycles
- Vehicles offset to one side
- Slow-moving vehicles or s ...
Other information:
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear bumper.
(Refer to Body - "Rear Bumper")
3.
Remove the BSD unit (A) after loosening the mounting screws.
Take care not to separate the bracket from rear bumper when removing the BSD ...
Components
Connector Pin Information
Pin No.Connector AConnector BConnector C1Rear left speaker (+)CAN highPower ground2Front left speaker (+)--3Front right speaker (+)--4Rear right speaker (+)Steering wheel remote-5---6-USB D (+)-7-USB/iPod VDDMonitor Rx DP8Illumination (+)AUX right inputMoni ...
