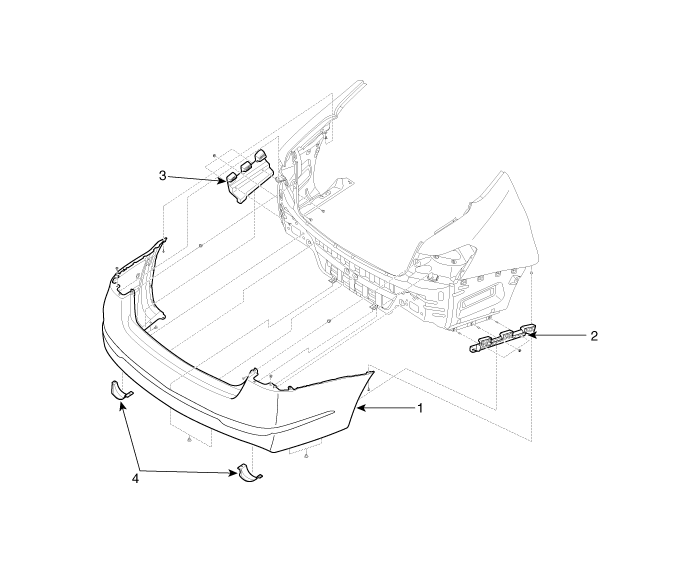

| Components(1) |

| 1. Rear bumper cover 2. Rear bumper side bracket [RH] | 3. Rear bumper side bracket [LH] 4. Tail trim cover |

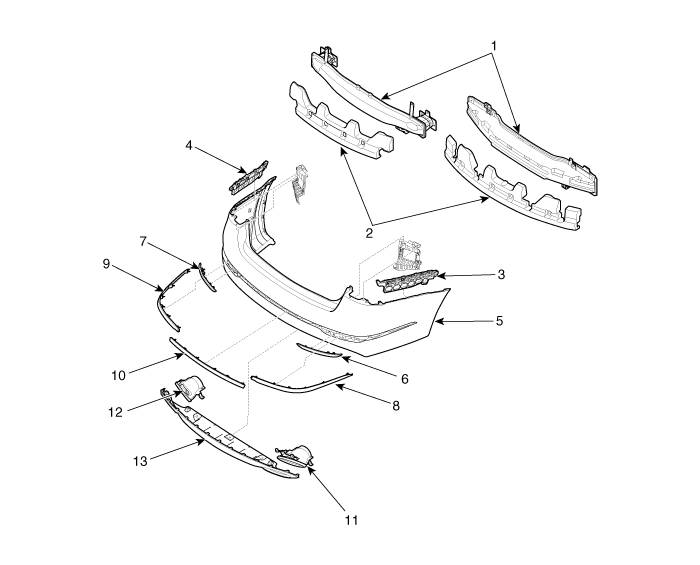

| Components(2) |

| 1. Rear bumper beam assembly 2. Rear bumper energy absorber 3. Rear bumper side bracket [RH] 4. Rear bumper side bracket [LH] 5. Rear bumper cover 6. Rear bumper deflector [RH] 7. Rear bumper deflector [LH] | 8. Rear bumper side moulding [RH] 9. Rear bumper side moulding [LH] 10. Rear bumper center moulding 11. Tail trim assembly [RH] 12. Tail trim assembly [LH] 13. Rear bumper lower cover |
Replacement • Put on gloves to protect your hands. • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Replacement • After remove the rear combination lamp. • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts your hands.
Description 1. The photo sensor is located at the center of defrost nozzle. 2. The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic tem
Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 7. 4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
