Kia Cadenza YG: Airbag Module / Side Airbag (SAB) Module Components and Components Location

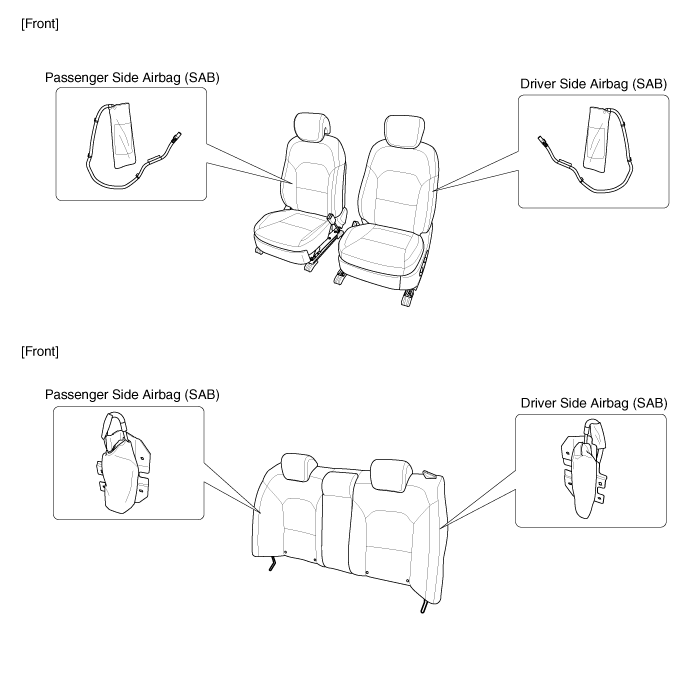

| Components |
Description The Side Airbags (SAB) are installed inside the front seat and protects the driver and passenger from danger when side crash occurs.
Removal Front Side Airbag 1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work. 2. Remove the front seat assembly.
