Kia Cadenza YG: Back View Camera System / Schematic Diagrams

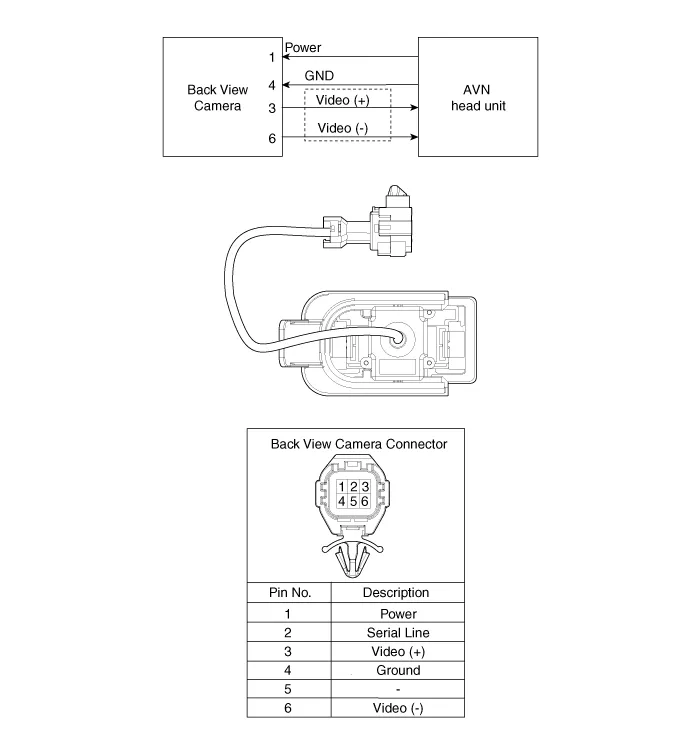

| Circuit Diagram |
Component Location 1. Back view camera2. AVN head unit
Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehicle through the ECM (Reverse Display Room Mirror) mirror or AVN head unit while backing-up.
