Kia Cadenza: Automatic Transaxle Control System / SS-A Solenoid Valve(ON/OFF) Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / SS-A Solenoid Valve(ON/OFF) Components and Components Location

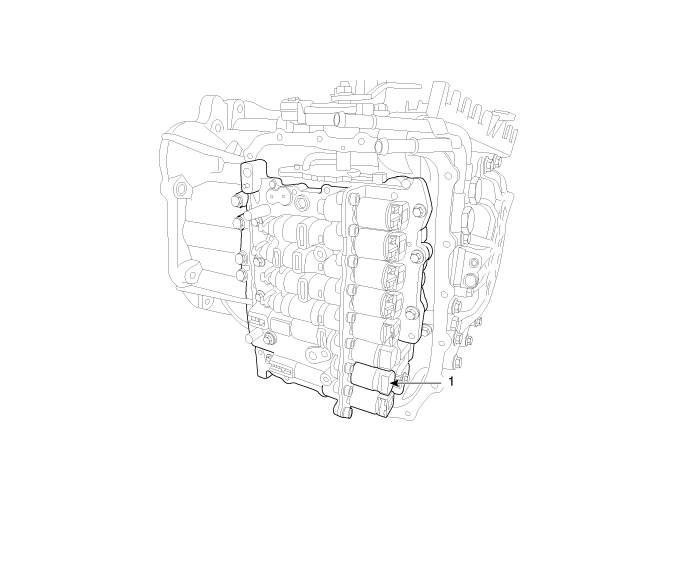

Components Location

1. SS-A Solenoid Valve (ON/OFF)
SS-A Solenoid Valve(ON/OFF) Specifications
Specification ItemSpecificationControl type ON/OFFCurrent value (mA)5.0 Coil resistance(Ω)10 ~ 11  ...

SS-A Solenoid Valve(ON/OFF) Description and Operation
Description • SS-A solenoid valve is ON/OFF type. • When TCM supplies variable current to solenoid valve, speed range is changed by operating the solenoid valve. SS-A Soleno ...
