Kia Cadenza: Heater / Temperature Control Actuator Components and Components Location

Kia Cadenza YG 2016-2025 Service Manual / Heating,Ventilation, Air Conditioning / Heater / Temperature Control Actuator Components and Components Location

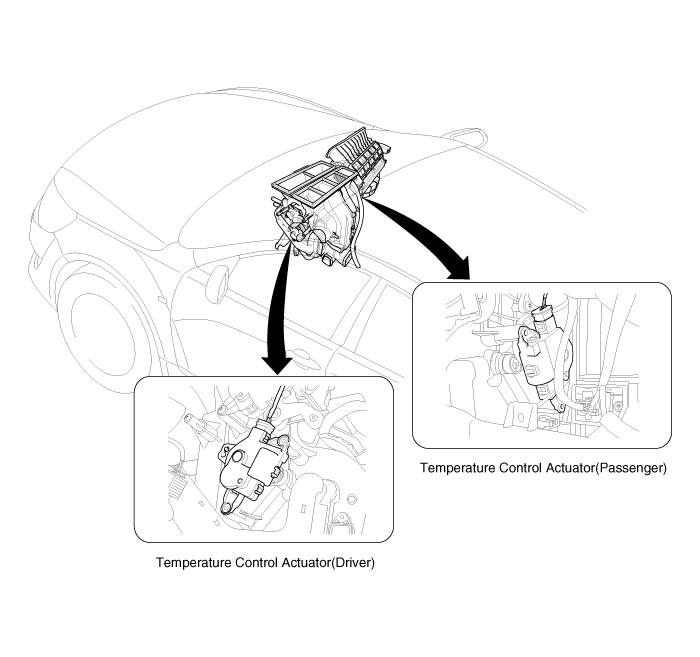

Component Location

Heater Unit Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery/ recycling/ charging station. 3. When the engine is cool, drain the engine coola ...

Temperature Control Actuator Description and Operation
Description 1. Heater unit includes mode control actuator and temperature control actuator. 2. Temperature control actuator is located at the heater unit. It regulates the temperature by the ...
