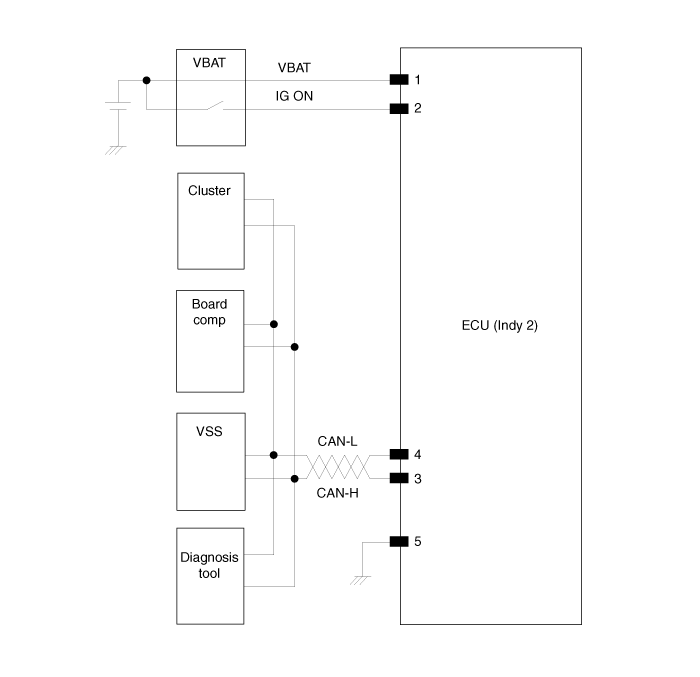

| Circuit Diagram |

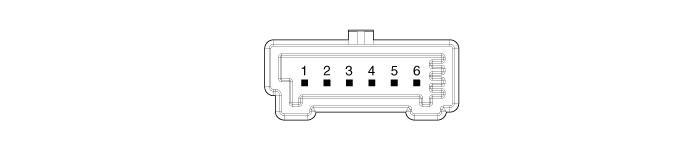

| Connector pin number |

| Pin No. | Pinning |
| 1 | V_BAT_ECU |
| 2 | IG_ON |
| 3 | CAN_High |
| 4 | CAN_Low |
| 5 | GND |
| 6 | NA |
Description 1. Mode (1) Virgin State • The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.
Operation 1. General Function • Auto-locate/learn takes place only once per Ignition cycle. • On successful completion, 4 road wheel sensor ID''s, together with their respective road wheel positions are latched into memory for monitoring.
Inspection Initialization and diagnosis sequence by using diagnostic equipment Below content summarize the procedure for A/S using Diagnostic equipment Download Parameter 1. Select "AFLS" menu after selecting a vehicle. 2. Select "Parameter download" menu for define a characteristc of vehicle.
Description 1. The photo sensor is located at the center of defrost nozzle. 2. The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic tem
