Kia Cadenza: Warning message and control / Warning message

Kia Cadenza YG 2016-2024 Owners Manual / Driving your vehicle / Blind-Spot Collision Warning (BCW)/ Blind-Spot Collision-Avoidance Assist (BCA) / Warning message and control / Warning message

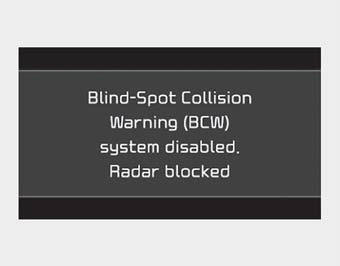

Blind-Spot Collision Warning (BCW) system disabled.

Radar blocked

• This warning message may appear when :

- One or both of the sensors on the rear bumper is blocked by dirt or snow or a foreign object.
- When a trailer or carrier is installed.
- Driving in rural areas where the sensor does not detect another vehicle for an extended period of time.
- When there is inclement weather such as heavy snow or rain.

If any of these conditions occur, the light on the Blind-Spot Safety button and the system will turn off automatically.

When BCW canceled warning message is displayed in the cluster, check to make sure that the rear bumper is free from any dirt or snow in the areas where the sensor is located. Remove any dirt, snow, or foreign material that could interfere with the radar sensors.

After any dirt or debris is removed, BCA will work in normal after engine restart.

If BCW/BCA still does not operate normally, have your vehicle inspected by an authorized Kia dealer.

✽ NOTICE

Turn off BCW/BCA and RCCA (if equipped) when a trailer or carrier is installed.

- Press the Blind-Spot Safety button (the indicator on the button extinguish)
- Deactivate RCCA by deselecting
- Deactivate RCCA by selecting “Settings > Vehicle > Driver Assistance > Parking Safety > Rear Cross-Traffic Safety” in the Infotainment System screen.

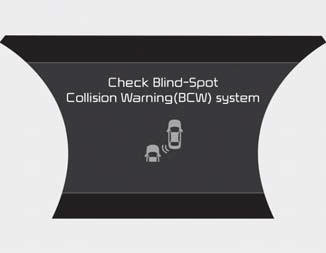

Check Blind-Spot Collision Warning (BCW) system

If there is a problem with BCW, a warning message will appear and the light on the switch will turn off. The system will turn off automatically. BCA will not operate also if BCW turns off due to malfunction.We recommend that you have your vehicle inspected by an authorized Kia dealer.

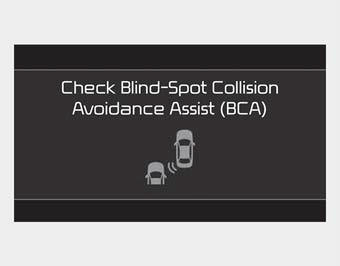

Check Blind-Spot Collision-Avoidance Assist (BCA) system

If there is a problem with BCA, a warning message will appear. The system will turn off automatically.

BCW will still operate even if BCA turns off due to malfunction.We recommend that you have your vehicle inspected by an authorized Kia dealer.

Detecting Sensor (front view camera/ rear corner radars)
Front view camera The front view camera is a sensor detecting the lane. If the front view camera is covered by heavy rain, heavy snow and fog or foreign objects, dust, the system may tempor ...

Limitations of the system
The driver must be cautious in the below situations, because the system may not detect other vehicles or objects in certain circumstances. The system may not work around 15 seconds after ...
