Kia Cadenza: Blind Spot Detection System / Blind Spot Detection Variant Coding Description and Operation

Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Variant Coding Description and Operation

Description

The used radar frequency of BSD is two, "North America region" and "Except North America region".

If it replaces BSD unit, BSD unit has to perform the procedure of variant coding.

BSD Variant Coding

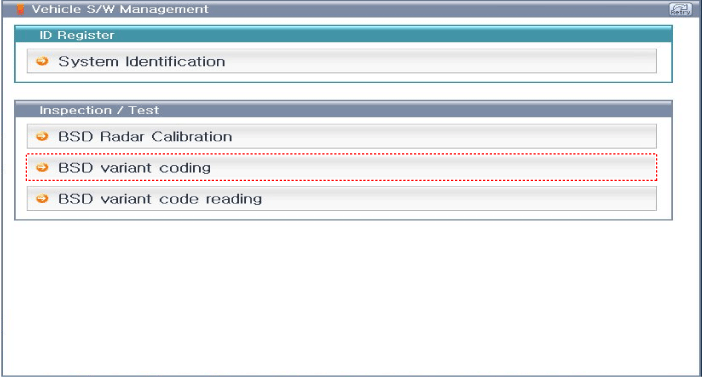

1.	Select the "BSD Variant Coding" procedure in BSD system.

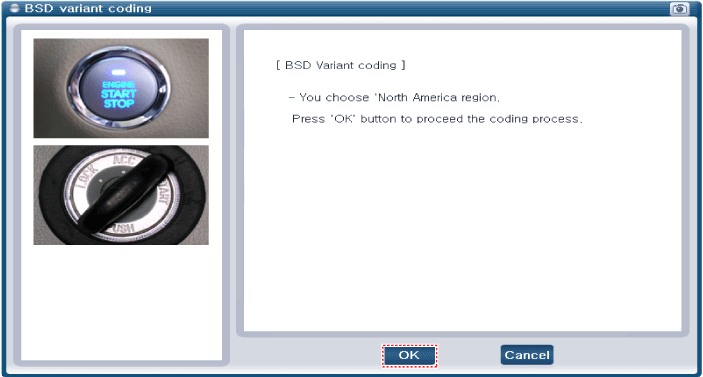

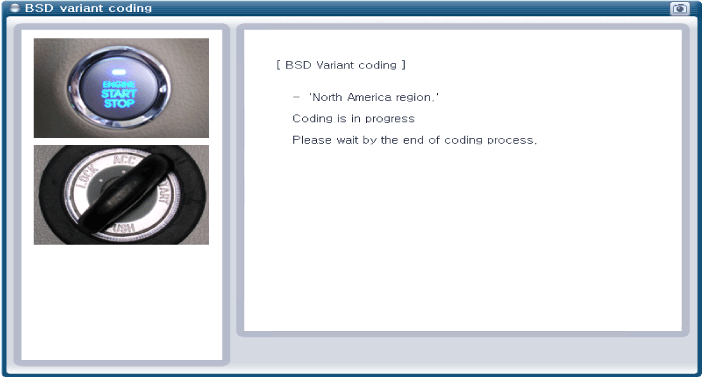

2.	Perform the "BSD Variant Coding" procedure according to the GDS screen message.

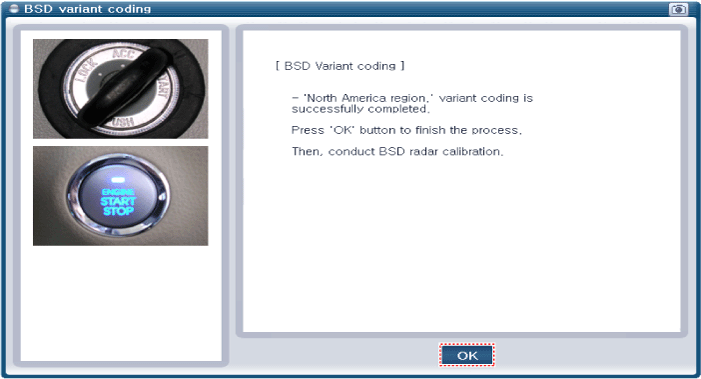

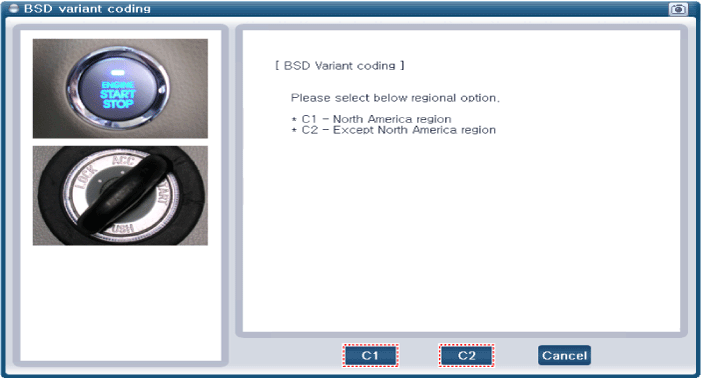

3.	Select "C1" or "C2" for each region and transmission. And then proceed the BSD variant coding process.

BSD Variant Code Reading

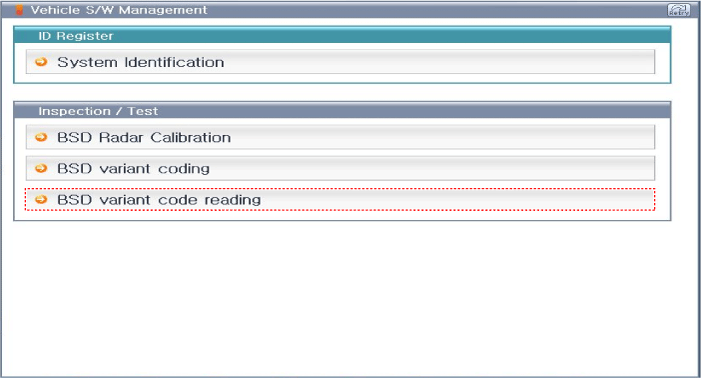

1.	Select the "BSD Variant Code Reading" procedure.

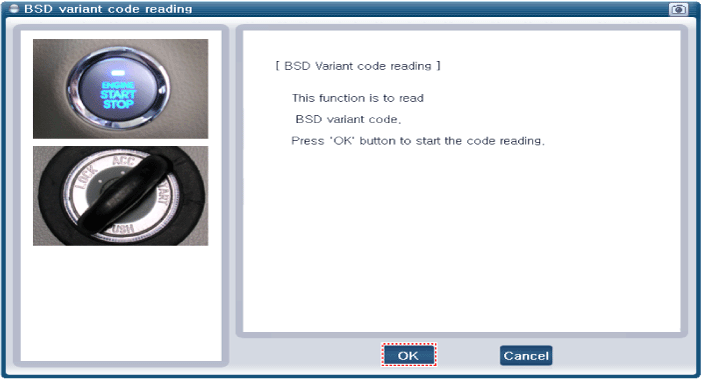

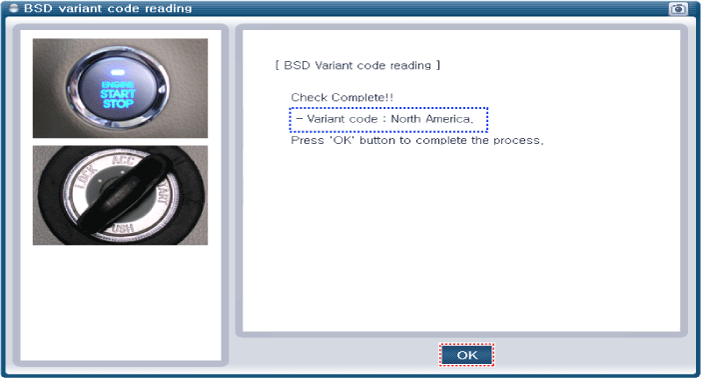

Proceed the "BSD Variant Code Reading" procedure according to the GDS screen message.

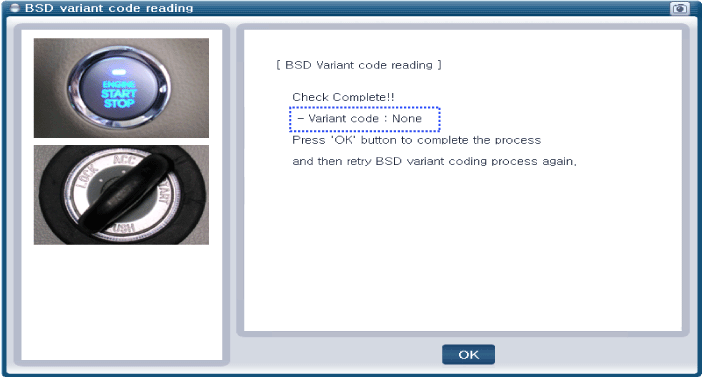

If BSD unit does not set "BSD Variant Coding", "Variant code : None" is verified.

Perform the "BSD Variant Coding" certainly.
