Kia Cadenza: Lighting / Check headlight

Kia Cadenza YG 2016-2024 Owners Manual / Features of your vehicle / Lighting / Check headlight

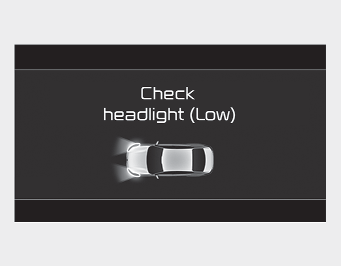

This warning message illuminates if there is a malfunction (burned-out bulb except LED lamp or circuit malfunction) with the headlamp. In this case, have your vehicle inspected by an authorized Kia dealer.

✽ NOTICE

When replacing the bulb, use the same wattage bulb. For more information, refer to “BULB WATTAGE” in chapter 8.
If a different wattage bulb is installed on the vehicle, this warning message is not displayed.
