Kia Cadenza YG: Rear Axle Assembly / Rear Hub - Carrier Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier Components and Components Location

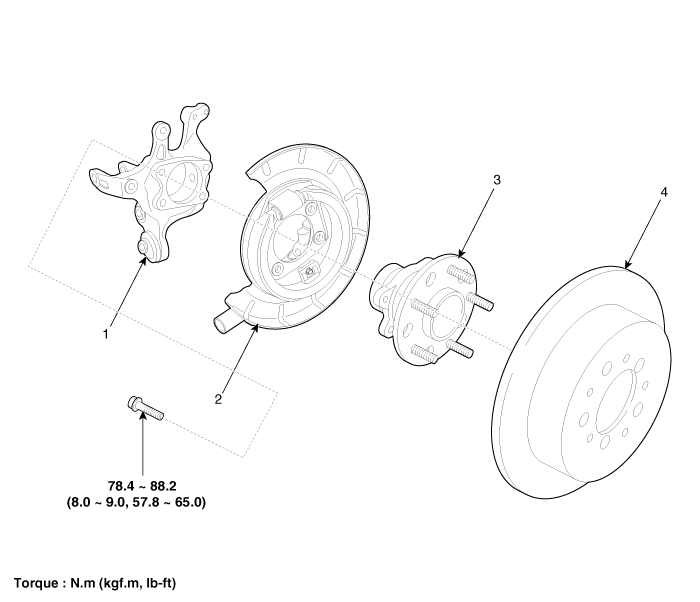

Components

1. Rear Carrier Assembly
2. Parking Brake Assembly
3. Rear Hub Assembly
4. Rear Brake Disc

    Replacement 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and tire (A) from rear hub.
