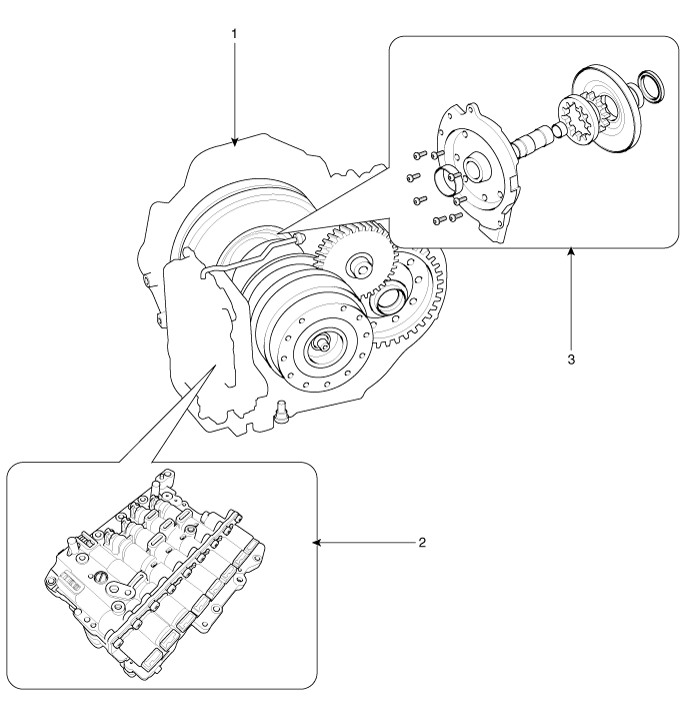

Components Location

1. Automatic transaxle
2. Valve body assembly
3. Oil pump assembly

Description and Operation
Description The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine. ATF passes through the oil fi ...

Oil Pump Description and Operation
Description The oil pump is built-in as a single unit with the 26 Brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transa ...
