Kia Cadenza YG 2016-2025 Service Manual / Body Electrical System / Seat Electrical / Components and Components Location

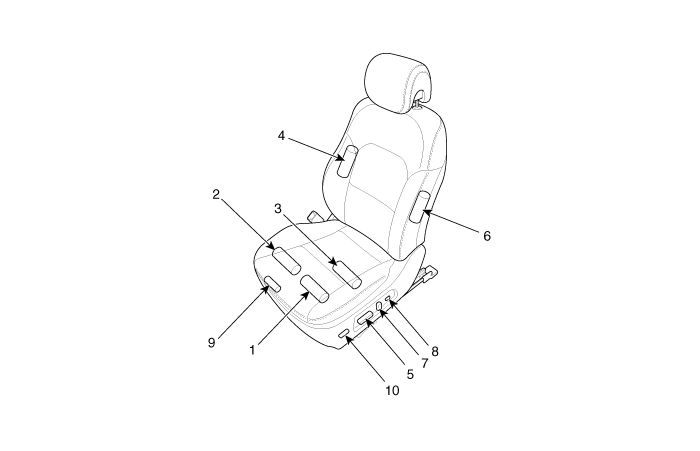

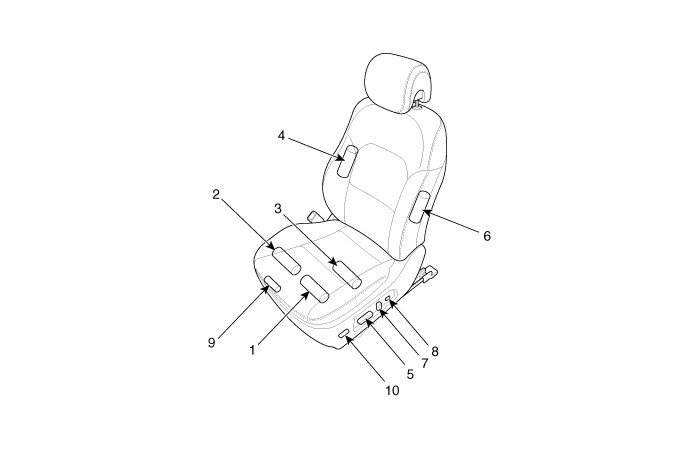

Component Location

1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumber support motor
5. Power seat control switch
6. Recline motor
7. Recline control switch
8. Lumber support switch
9. Cushion extension motor
10. Cushion extension switch

Seat Electrical
...

Power Seat Motor Repair procedures
Inspection Power Seat Motor 1. Disconnect the connectors for each motor. A : Front height motor B : Slide motor C : Rear height motor D : Recline motor E : Lumber support motor F : Cushion ...
