Kia Cadenza YG: Cruise Control System / Cruise Control Switch Schematic Diagrams

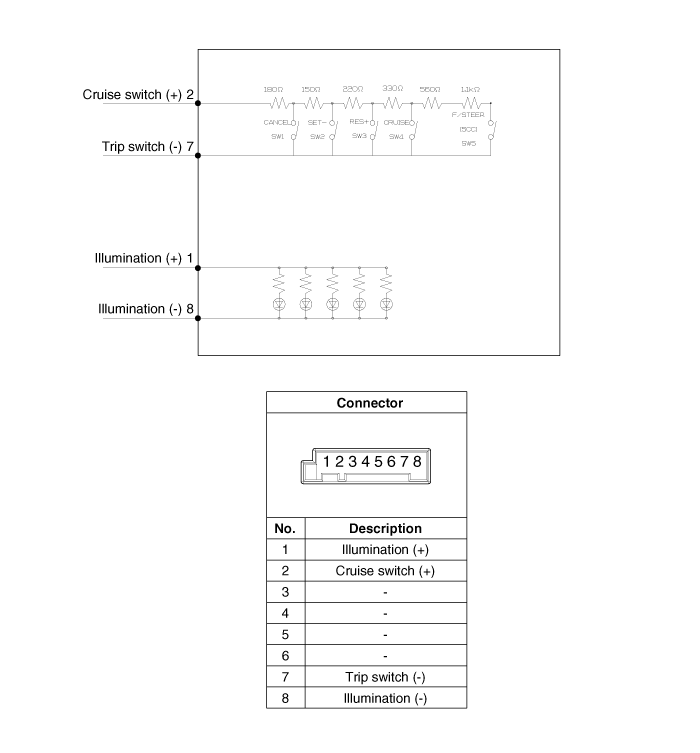

| Circuit Diagram |
Components 1. SET - switch2. RES + switch3. SCC switch4. CANCEL switch5. CRUISE switch
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the air-bag module from the steering wheel. (Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring") 3.
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Photo Sensor Description and Operation
Description 1. The photo sensor is located at the center of defrost nozzle. 2. The photo sensor contains a photovoltaic (sensitive to sunlight) diode. The solar radiation received by its light receiving portion, generates an electromotive force in proportion to the amount of radiation received which is transferred to the automatic tem
Kia Cadenza YG 2016-2021 Service Manual: Photo Sensor Repair procedures
Inspection 1. Ignition "ON" 2. Using the scan tool. 3. Emit intensive light toward photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and reduce with lower intensive light.
