Kia Cadenza: Front seat adjustment - power / Cushion extension (for driver's seat)

Kia Cadenza YG 2016-2025 Owners Manual / Safety features of your vehicle / Seat / Front seat adjustment - power / Cushion extension (for driver's seat)

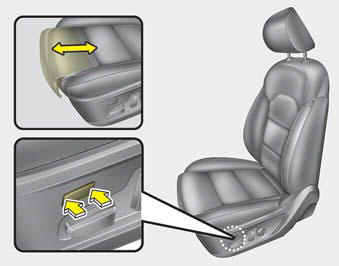

To move the front part of cushion forward:

1. Push the front part of control switch to move the seat cushion to the desired length.

2. Release the switch once the seat cushion reaches the desired length.

To move the front part of cushion rearward:

1. Push the rear part of control switch to move the seat cushion to the desired length.

2. Release the switch once the seat cushion reaches the desired length.

Forward and backward
Push the control switch forward or backward to move the seat to the desired position. When the control switch is operated forward, the seat cushion is slightly raised, and the seat cushion ...

Seatback angle
Push the control switch forward or backward to move the seatback to the desired angle. Release the switch once the seat reaches the desired position. ...
