Kia Cadenza: Exterior / Front Door Components and Components Location

Kia Cadenza YG 2016-2023 Service Manual / Body (Interior and Exterior) / Exterior / Front Door Components and Components Location

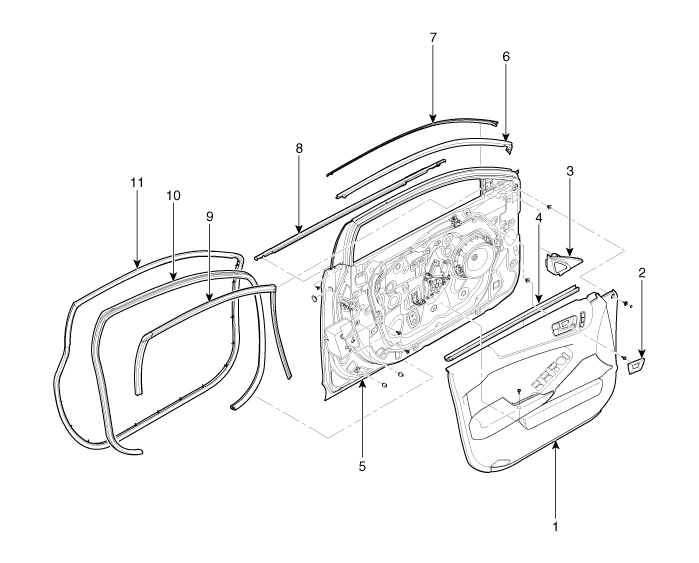

Components

1. Front door trim
2. Front door inside cap
3. Front door frame inner cover
4. Front door belt inner weatherstrip
5. Front door panel
6. Front door upper opening weatherstrip

7. Front door frame moulding
8. Front door belt outer weatherstrip
9. Front door window glass run assembly
10. Front door body side weatherstrip
11. Front door side weatherstrip
