Kia Cadenza: Engine Control System / Fuel Pressure Control Valve (FPCV) Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve (FPCV) Schematic Diagrams

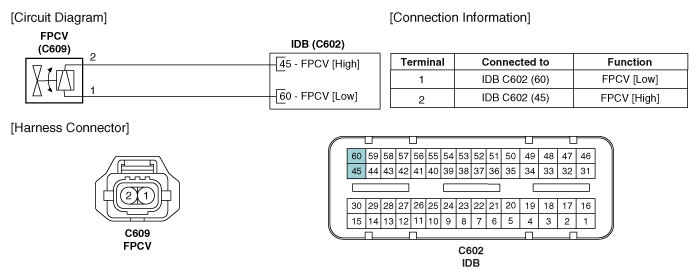

Circuit Diagram

Fuel Pressure Control Valve (FPCV) Troubleshooting
Signal Waveform ...

Fuel Pressure Control Valve (FPCV) Repair procedures
Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector. 3. Measure resistance between the fuel ...
