Kia Cadenza: Engine Control System / Injector Schematic Diagrams

Kia Cadenza YG 2016-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Injector Schematic Diagrams

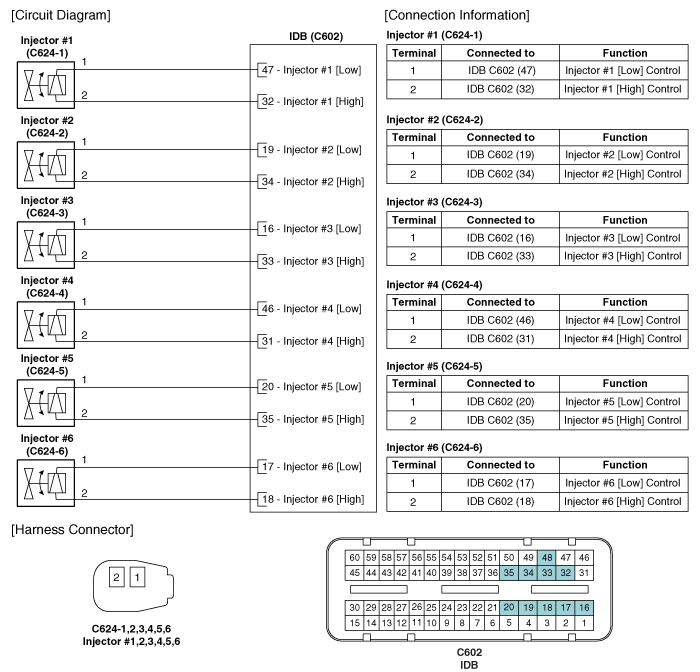

Circuit Diagram

Injector Troubleshooting
Signal Waveform ...

Injector Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the injector terminals 1 and 2. 4. Check that the resistance is within t ...
