Kia Cadenza YG: Brake System / Front Disc Brake Components and Components Location

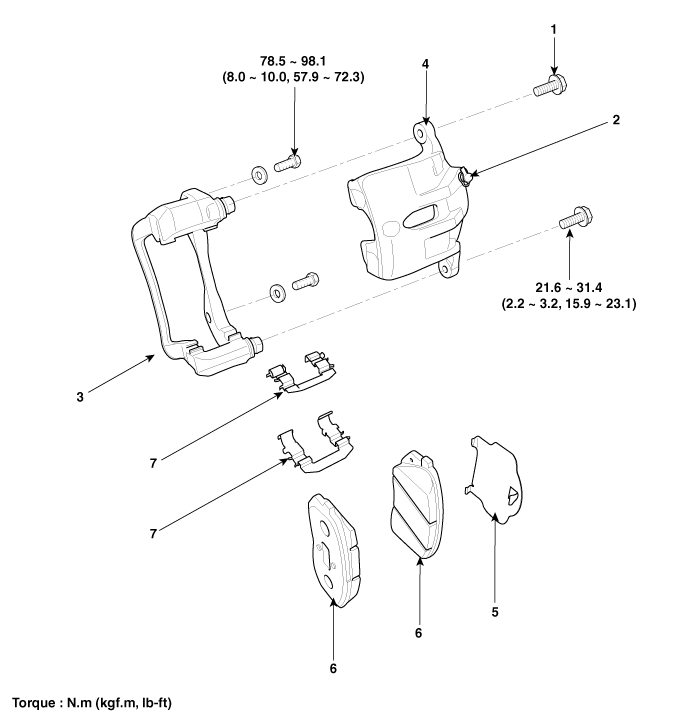

| Components |
| 1. Guide rod bolt 2. Bleed screw 3. Caliper carrier 4. Caliper body | 5. Inner pad shim 6. Brake pad 7. Pad retainer |
Removal 1. Remove the crash pad lower panel. (Refer to the Body group- crash pad). 2. Remove the shower duct (A). 3. Disconnect the stop lamp switch connector (A).
Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) 2. Loosen the hose eyebolt (C) and caliper mounting bolts (B), then remove the front caliper assembly (A).
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Mode Control Actuator Repair procedures
Inspection 1. Ignition "OFF” 2. Disconnect the connector of mode control actuator. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3and grounding terminal 7. 4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
Kia Cadenza YG 2016-2021 Service Manual: Blower Unit Components and Components Location
Component Location Components 1. Duct Seal2. Duct Case3. Inlet Door4. Intake Actuator5. Inlet Duct Case (A)6. Climate control air filter7. Cluster Ionizer8. Climate control air filter Cover9. Blower Upper Case10. Blower Lower Case11. FET12. Resistor13.
