Kia Cadenza: Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

Kia Cadenza YG 2016-2024 Service Manual / Engine Control / Fuel System / Engine Control System / Intake Air Temperature Sensor (IATS) Schematic Diagrams

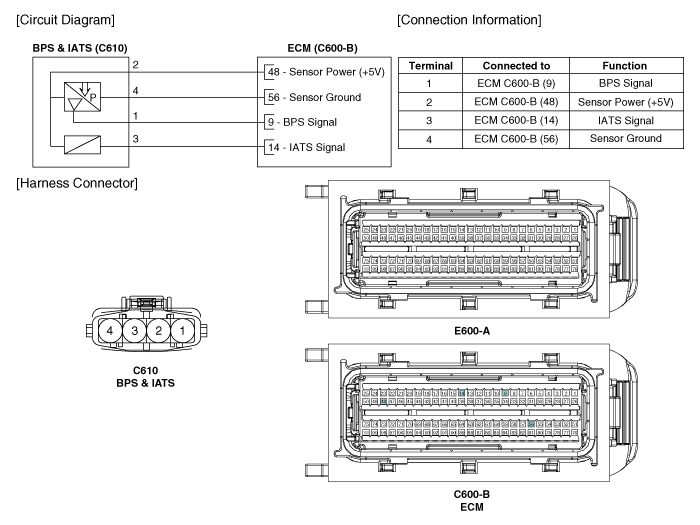

Circuit Diagram

Intake Air Temperature Sensor (IATS) Specifications
Specification TemperatureResistance (kΩ)°C°F-40-4040.93 ~ 48.35-20-413.89 ~ 16.030325.38 ~ 6.0910503.48 ~ 3.9020682.31 ~ 2.57401041.08 ~ 1.21601400.54 ~ 0.66801760.29 ~ 0.34 ...

Intake Air Temperature Sensor (IATS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the IATS connector. 3. Measure resistance between the IATS terminals 3 and 4. 4. Check that the resistance is within the speci ...
