Kia Cadenza YG: Engine Control System / Camshaft Position Sensor (CMPS) Troubleshooting

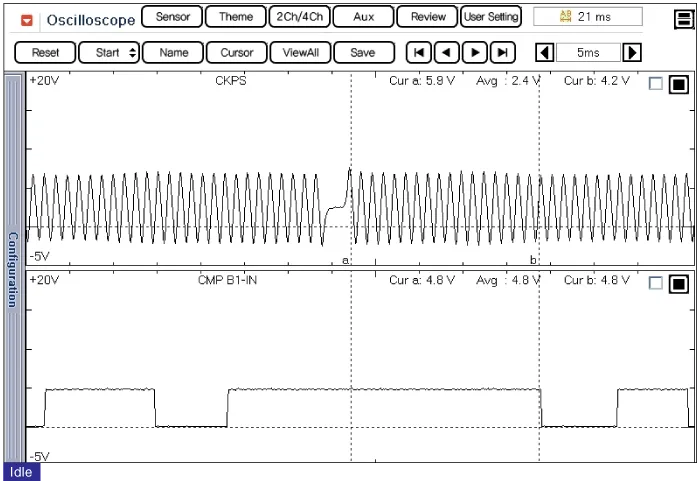

Wave Form

    Specification ItemSpecificationOutput Voltage (V)High: 5.0VLow: 0.7VAir Gap (mm)0.5 ~ 1.5

    Circuit Diagram

    Other information:

    Kia Cadenza YG 2016-2021 Service Manual: Surround View Monitoring Unit Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the glove box housing. (Refer to Body - "Glove Box Housing") 3. Remove the SVM unit (B) after disconnecting the connectors (A) and mounting bolts. Installation 1. Install the SVM unit.
