Components

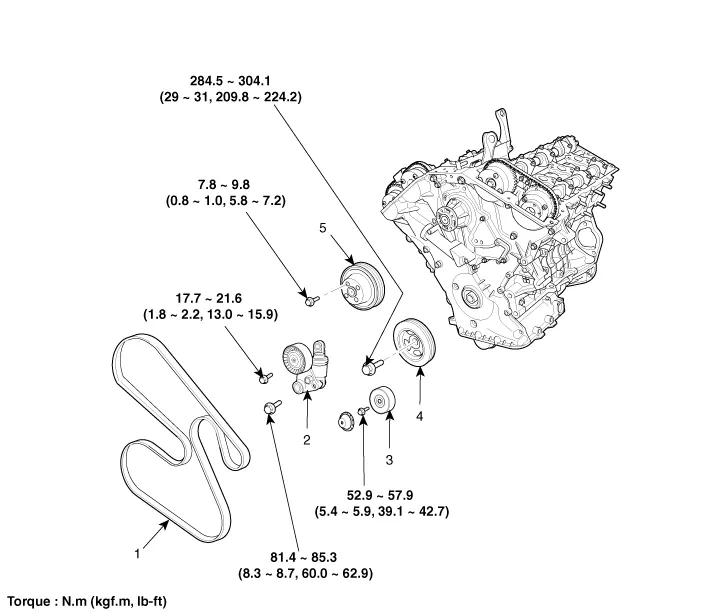

1. Drive belt
2. Drive belt tensioner
3. Idler
4. Crank shaft pulley
5. Water pump pulley

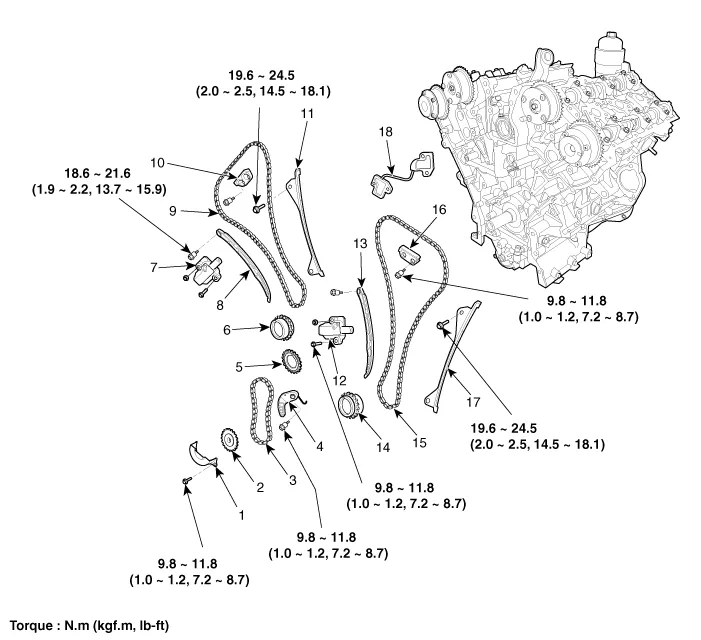

1. Oil pump chain cover
2. Oil pump sprocket
3. Oil pump chain
4. Oil pump tensioner assembly
5. Crankshaft oil pump sprocket
6. Crankshaft RH chain sprocket
7. RH Timing chain auto tensioner
8. RH Timing chain tensioner arm
9. RH Timing chain
10. RH Timing chain cam to cam guide
11. RH Timing chain guide
12. LH Timing chain auto tensioner
13. LH Timing chain tensioner arm
14. Crankshaft LH chain sprocket
15. LH Timing chain
16. LH Timing chain cam to cam guide
17. LH Timing chain guide
18. Tensioner adapter

    Components 1. Drive belt
