Kia Cadenza YG: Timing System / Drive Belt Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Timing System / Drive Belt Components and Components Location

Components

1. Drive belt

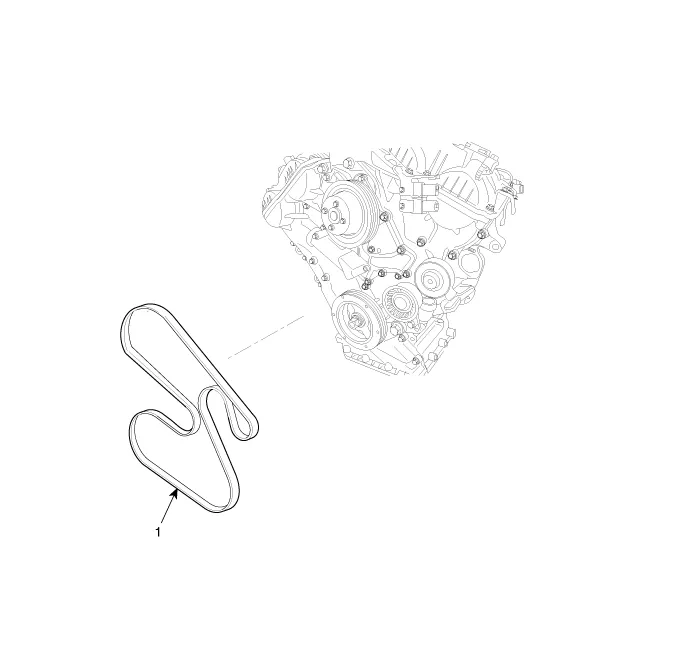

    Components 1. Drive belt2. Drive belt tensioner3. Idler4. Crank shaft pulley5. Water pump pulley 1. Oil pump chain cover2. Oil pump sprocket3.

    Removal and Installation 1. Disconnect the battery negative terminal. 2. To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).
