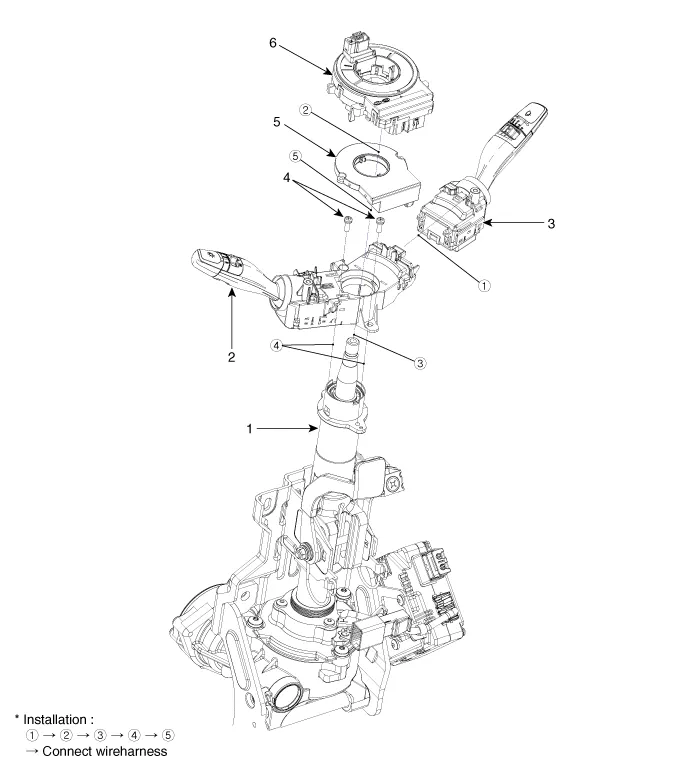

Component (1)

1. Steering column
2. Lighting switch
3. Wiper switch

4. Screw
5. Steering angle sensor
6. Clock spring

Component (2)

❮Specifications

Specifications ItemsSpecificationsRated voltageDC 12VOperating temperature range-30°C ~ +80°C (-22 ~ +176°F)Rated loadDimmer & passing switchHigh : 0.

Repair procedures❯

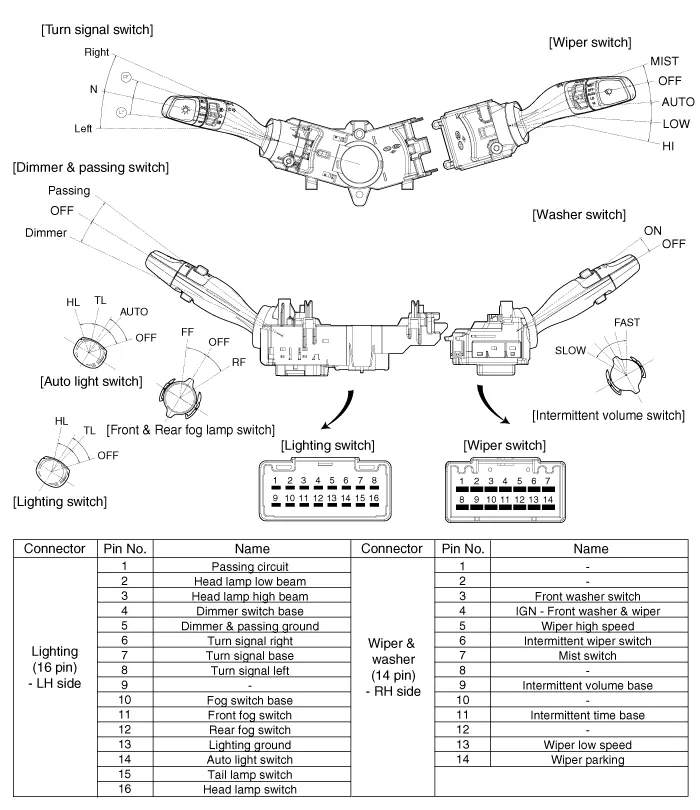

Inspection Lighting Switch Inspection With the multi function switch in each position, make sure that continuity exists between the terminals below.
