Kia Cadenza YG: Lane Departure Warning System (LDWS) / Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Lane Departure Warning System (LDWS) / Components and Components Location

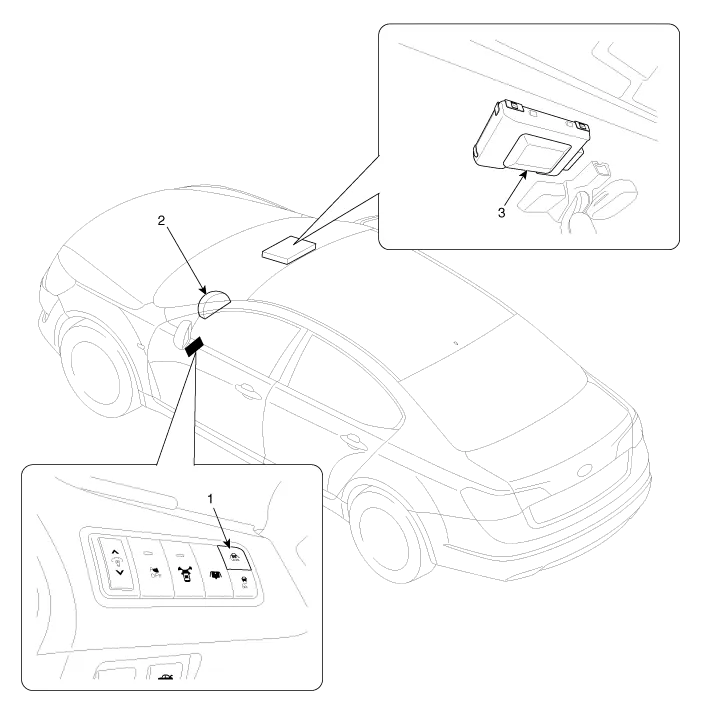

Components

1. LDWS ON/OFF Switch
2. Instrument Cluster
3. LDWS Unit & Camera Module

    Description System Operation Typically, lane departure warning is activated at a speed over 70 KPH, but suppressed in case of unintentional lane departure when driver do not operate turn signal.
