Kia Cadenza YG: Cylinder Block / Drive Plate Components and Components Location
| Components |

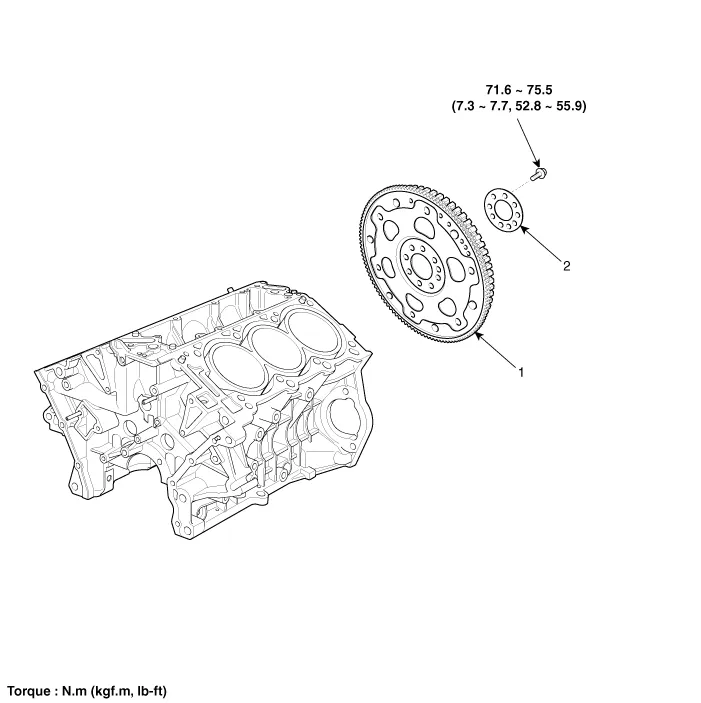

| 1. Drive plate 2. Adapter plate |
Removal 1. Remove the LH/RH cylinder head assembly and gasket. (Refer to Cylinder Head Assembly - "Cylinder Head") 2. Remove the water jacket seperators (A).
Removal and Installation 1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the adapter plate (A) and the drive plate (B).
Other information:
Kia Cadenza YG 2016-2021 Service Manual: Description and Operation
Description Surround View Monitoring System (SVM) is the system that allows video monitoring of 360 degrees around the vehicle. The system includes 4 ultra optical camera mounted around the vehicle (front, both sides, rear). The video from these cameras are applied with distortion compensation, time point conversion, and video merging
Kia Cadenza YG 2016-2021 Service Manual: Repair procedures
Removal 1. Remove the trunk trim in the trunk after removing the screws and clips. (Refer to Body - "Trunk") 2. Remove the camera holder (A) as shown arrow direction, and then remove the back view camera (B). Installation 1. Install the back view camera and camera holder.
