Kia Cadenza YG: Timing System / Front Oil Seal Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal Components and Components Location

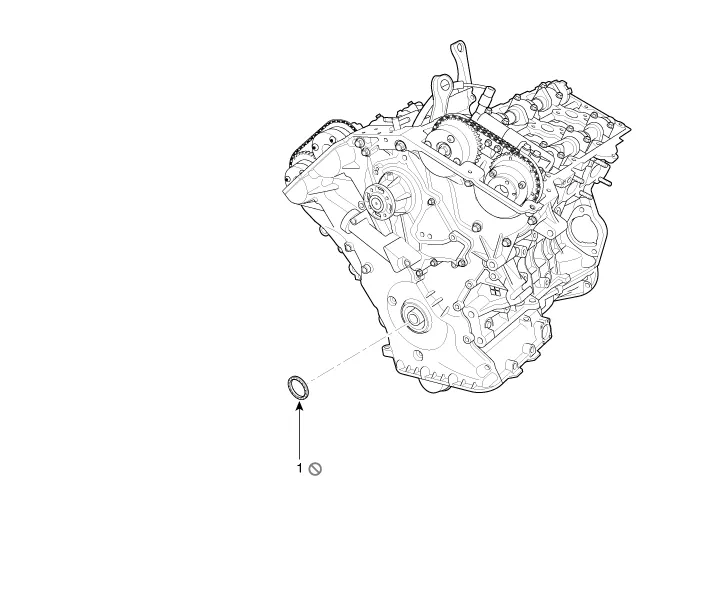

Components

1. Front oil seal

    Removal and Installation     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

    Replacement 1. Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley") 2. Remove the front oil seal (A). 3.
