Kia Cadenza YG: Windshield Wiper/Washer / Front Washer Motor Repair procedures

Kia Cadenza YG 2016-2021 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Washer Motor Repair procedures

Inspection
1.
With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
2.
Connect positive (+) battery cables to terminal 1 and negative (-) battery cables to terminal 2 respectively.
3.
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
4.
If they are abnormal, replace the washer motor.
No.
Description
No.
Description
1
Ground
2
Windshield washer (+)

Washer Fluid Level Sensor Switch
1.
Disconnect the negative(-) battery terminal.
2.
Drain the washer fluid less than 650 cc.
3.
Check for continuity between the No. 1 and No.2 terminal in each float position.
There should be continuity when the float is down.
There should be no continuity when the float is up.
4.
If the continuity is not as specified, replace the washer fluid level switch.

Removal

–
When servicing the washer pump, be careful not to damage the washer pump seal.
–
Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper.
(Refer to Body - "Front Bumper")
3.
Remove the washer hose (B) and disconnect the washer motor connector (A).

4.
Remove the washer motor (A).


–
Washer fluid may flow out of the opening of reservior.
5.

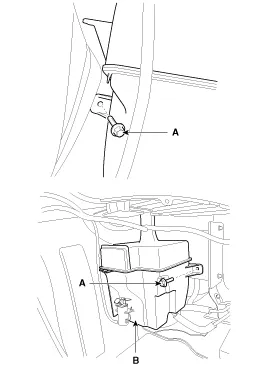

Remove the washer reservoir (B) after removing 2 bolts (A).

Installation
1.
Install the washer reservoir.

Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.
2.
Install the washer motor.
3.
Install the washer hose.
4.
Connect the washer motor connector and level sensor connector.
5.
Install the front bumper.
6.
Check the washer motor operation.

    Removal 1. Loosen the windshield wiper arm nut (B) after removing a wiper cap (A). 2. Remove the windshield wiper arm and blade (A). 3. If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm.
