Kia Cadenza YG: Timing System / Idler Components and Components Location

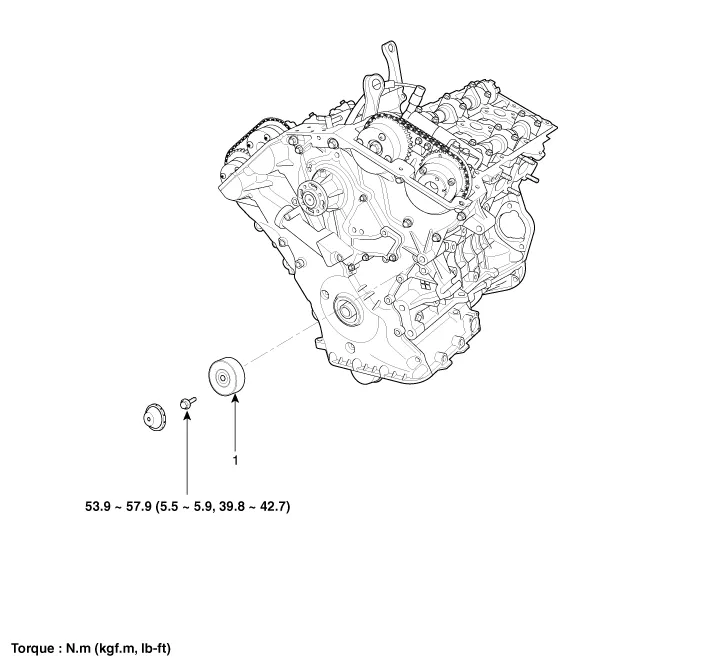

Components

1. Idler

    Removal and Installation 1. Disconnect the battery negative terminal. 2. To release the tension, turn the drive belt tensioner counterclockwise then remove the drive belt (A).

    Removal and Installation 1. Remove the drive belt. (Refer to Timing System - "Drive Belt") 2. Remove the drive belt idler (A). Tightening torque : 53.
