Components

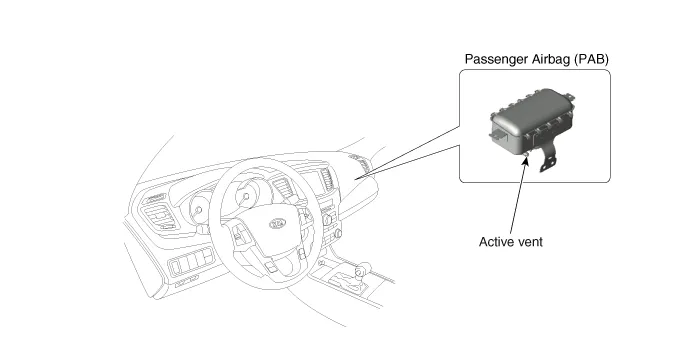

    Description Passenger Airbag (PAB) module is located in the passenger crash pad. This PAB contains 2 firing squibs of airbag and 1 firing squib of active vent.

    Removal 1. Disconnect the battery negative cable and wait for at least thirty seconds before beginning work. 2. Remove the glove box housing. (Refer to Body - "Glove box housing") 3.

    Other information:

    Kia Cadenza YG 2016-2021 Service Manual: Auto Head lamp leveling Unit Repair procedures

    Removal Height Sensor 1. Remove the height sensor connector (A). 2. Loosen the mounting bolts(Body: 2EA, chassis: 1EA) from height sensor bracket. Tightening torque : 3 ~ 5N.m (30 ~ 50kgf.m, 2.21 ~ 3.68lb-ft) 3. Remove the height sensor.

    Kia Cadenza YG 2016-2021 Service Manual: Evaporator unit Repair procedures

    Inspection 1. Ignition "OFF". 2. Disconnect evaporator temperature sensor. 3. Using the multi-tester, Measure resistance between terminal "1" and "2" of evaporator temperature sensor. Specification Evaporator coretemperature [°C(°F)]Resistance[KΩ]Voltage[V]-20(-4)70.
