Kia Cadenza YG: Brake System / Rear Disc Brake Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Brake System / Brake System / Rear Disc Brake Components and Components Location

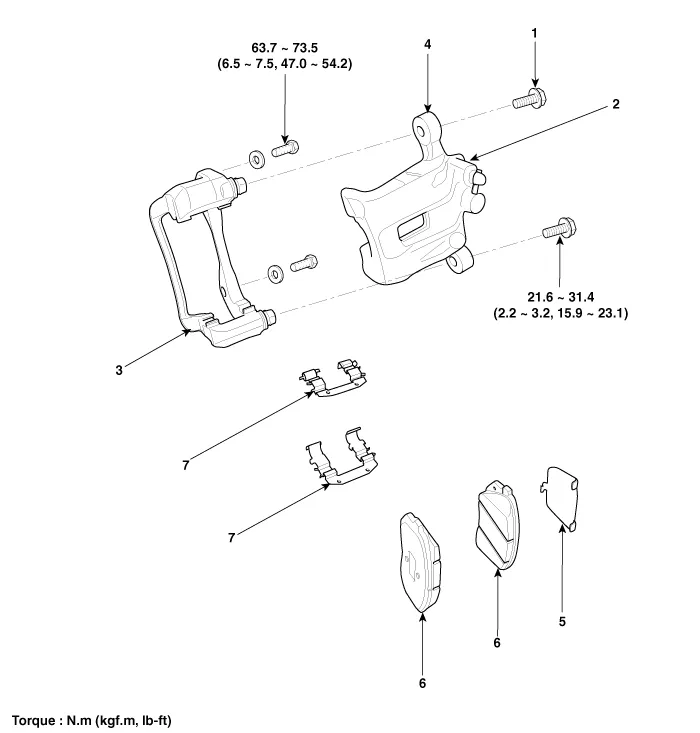

Components (Without EPB)

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Inner pad shim
6. Brake pad
7. Pad retainer

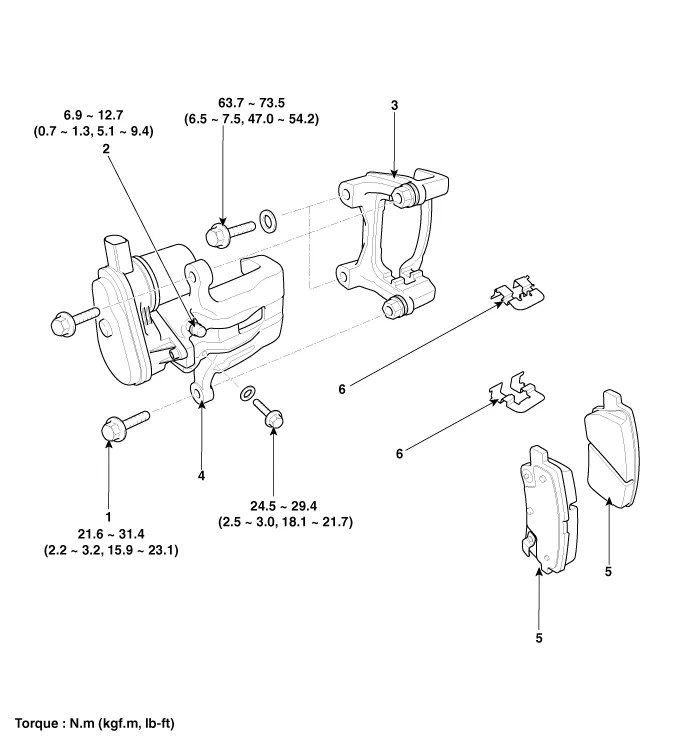

Components (With EPB)

1. Guide rod bolt
2. Bleed screw
3. Caliper carrier
4. Caliper body
5. Brake pad
6. Pad retainer

    Removal 1. Remove the front wheel & tire. Tightening torque: 88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft) 2. Loosen the hose eyebolt (C) and caliper mounting bolts (B), then remove the front caliper assembly (A).

    Removal 1. Remove the rear wheel & tire. Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft) 2. Release the parking brake.
