Kia Cadenza YG: Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location
| Components |

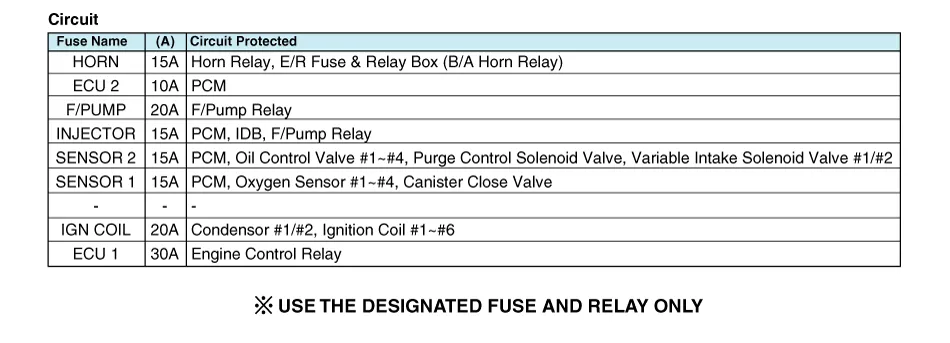

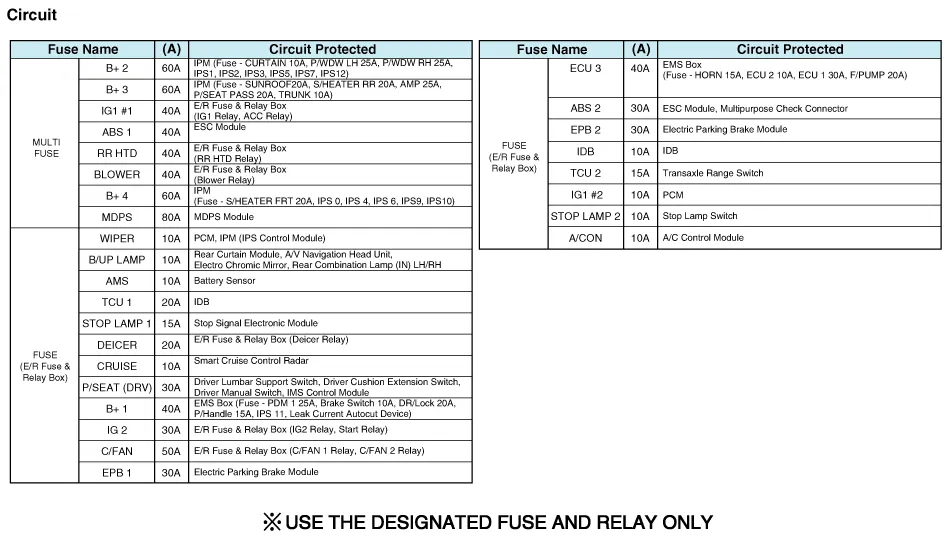

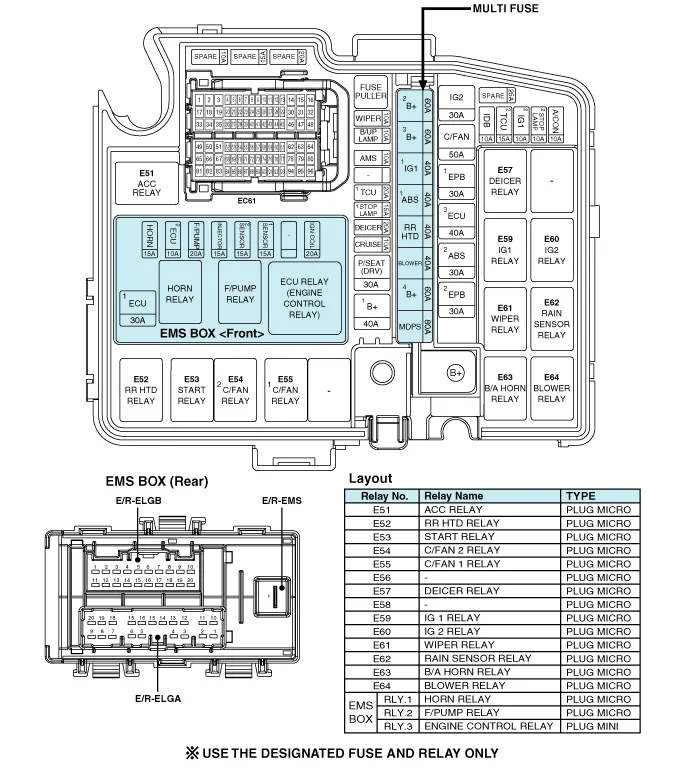

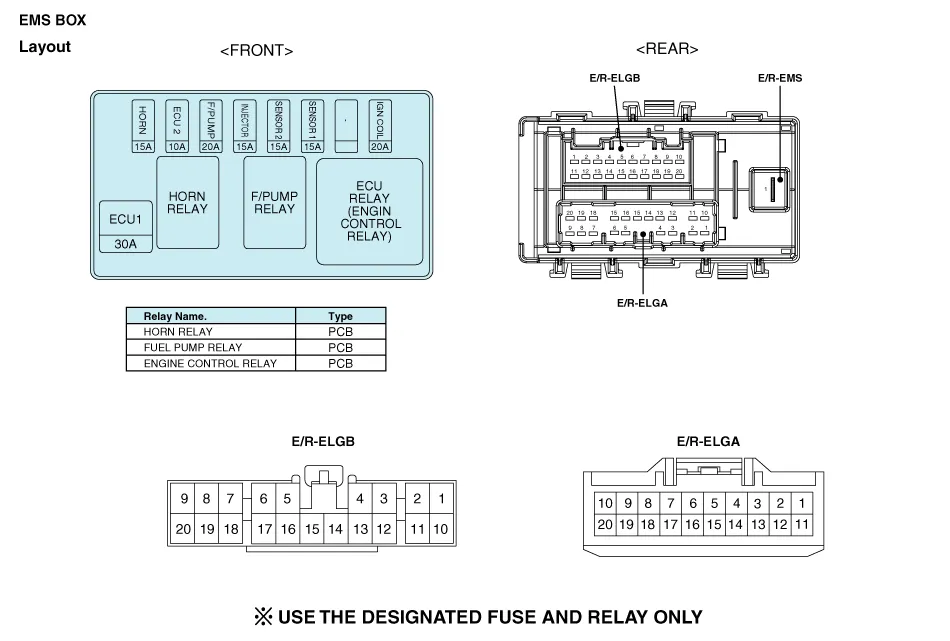

Component Location 1. Front deicer relay2. IGN2 relay3. Rain sensor relay4. Blower relay5. Burglar alarm horn relay6. Wiper relay7. IGN1 relay8. Cooling pan relay #19.
Inspection Power Relay Test (Type A) – Do not use pliers. – Pliers will damage the relays, which could cause the engine to stall or not start.
