| Diagnosis With GDS |
| 1. |
BSD system defects can be quickly diagnosed with the GDS. GDS
operates actuator quickly to monitor, input/output value and self
diagnosis. |
| 2. |
Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS. |
| 3. |
Select the vehicle model and then BSD system. |
| 4. |

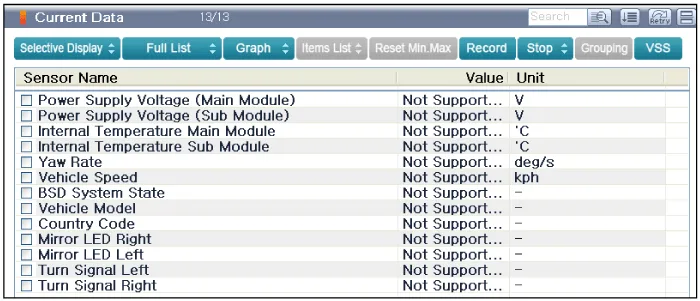

Select "Input/output monitoring", if you want to check current data of BSD system.
|
| 5. |

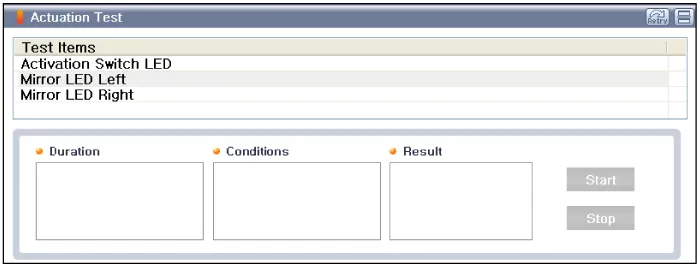

If you want to check each module operation forcefully, select "Actuation test".
|
