Kia Cadenza YG: Electric Power Steering / Schematic Diagrams

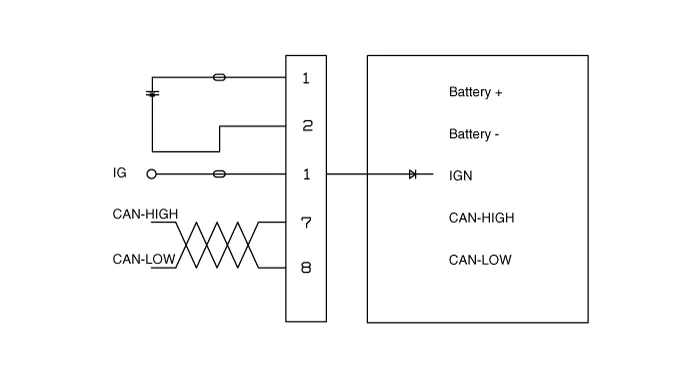

| MDPS Circuit Diagram |

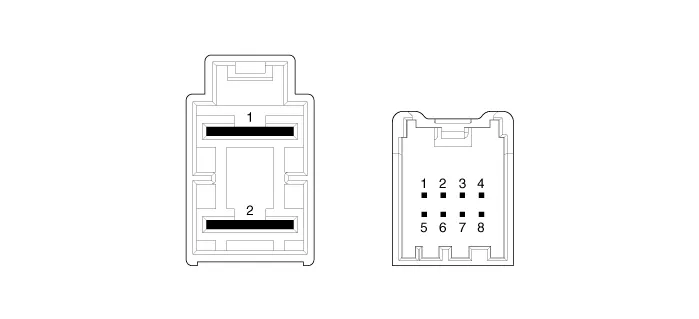

| Type | Pin No | Description |
| Battery | 1 | Battery + |
| 2 | Battery - | |
| Vehicle | 1 | IGN |
| 2 | - | |
| 3 | - | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 | High_CAN | |
| 8 | Low_CAN |
Components 1. Steering column2. ECU3. Motor4. Steering gear box
General Inspection After or before servicing the EPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and if abnormal symptom is detected, perform necessary remedy and inspection.
