Kia Cadenza YG: Cooling System / Thermostat Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Cooling System / Thermostat Components and Components Location

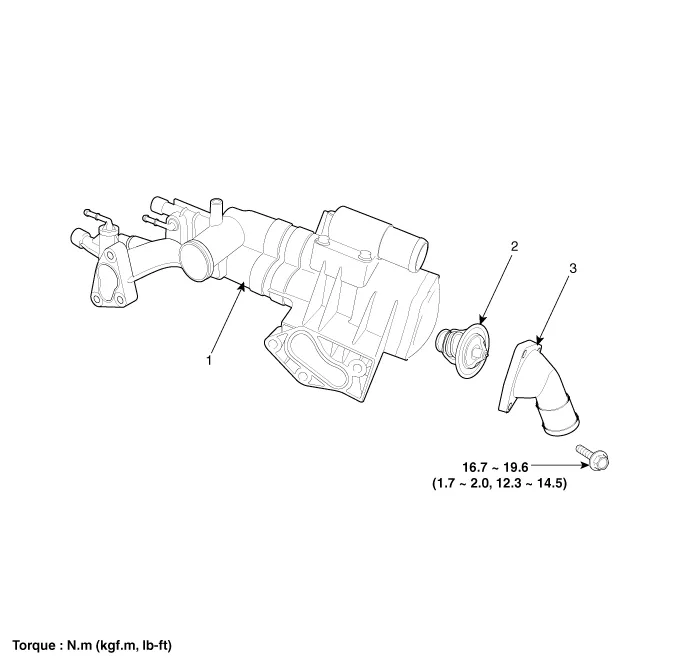

Components

1. Water temperature control assembly
2. Thermostat
3. Water inlet fitting pipe

    Troubleshooting SymptomsPossible CausesRemedyCoolant leakage • From the bleed hole of the water pump Visually check • Check leaks after about ten-minute warming up.

    Removal     Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.
