Kia Cadenza YG: Timing System / Timing Chain Cover Components and Components Location

Kia Cadenza YG 2016-2021 Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover Components and Components Location

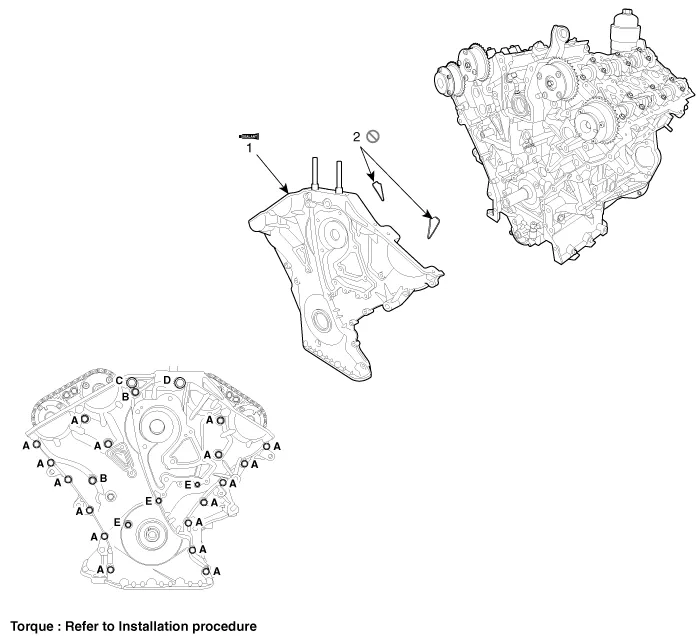

Components

1. Timing chain cover
2. Gasket

    Replacement 1. Remove the crankshaft damper pulley. (Refer to Timing System - "Crankshaft Damper Pulley") 2. Remove the front oil seal (A). 3.

    Removal 1. Remove the LH/RH cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Remove the lower oil pan. (Refer to Lubrication System - "Oil Pan") 3.
