Kia Cadenza YG: Cylinder Block / Water Jacket Seperator Components and Components Location

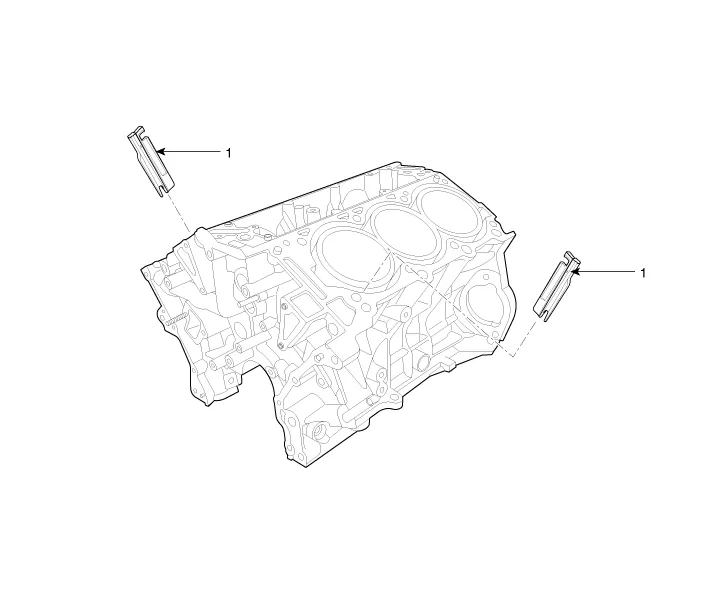

| Components |
| 1. Water jacket separator |
Components 1. Piston ring2. Piston3. Connecting rod4. Connecting rod upper bearing5. Piston pin6. Connecting rod lower bearing7. Connecting rod bearing cap8.
Removal 1. Remove the LH/RH cylinder head assembly and gasket. (Refer to Cylinder Head Assembly - "Cylinder Head") 2. Remove the water jacket seperators (A).
