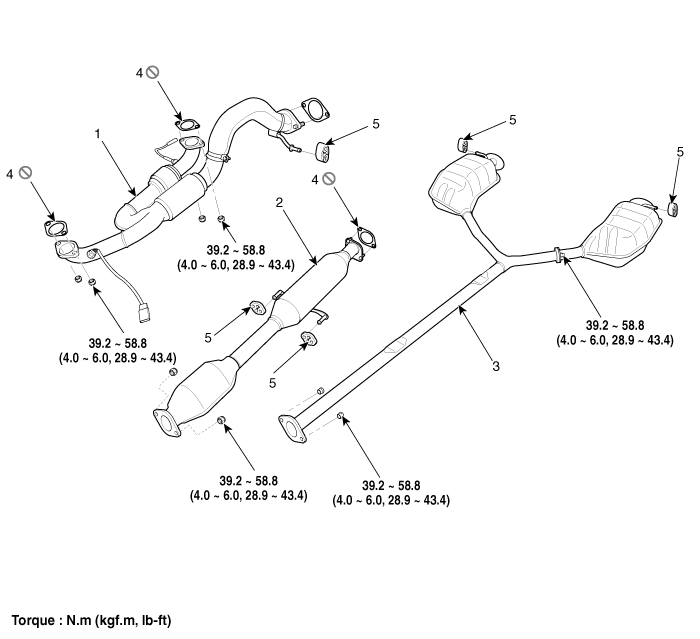

Components

1. Front muffler
2. Catalytic converter & center muffler assembly
3. Main muffler

4. Gasket
5. Hanger
