Kia Cadenza: Automatic Transaxle Control System / Output Speed Sensor Troubleshooting

Kia Cadenza YG 2016-2023 Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor Troubleshooting

Signal Waveform

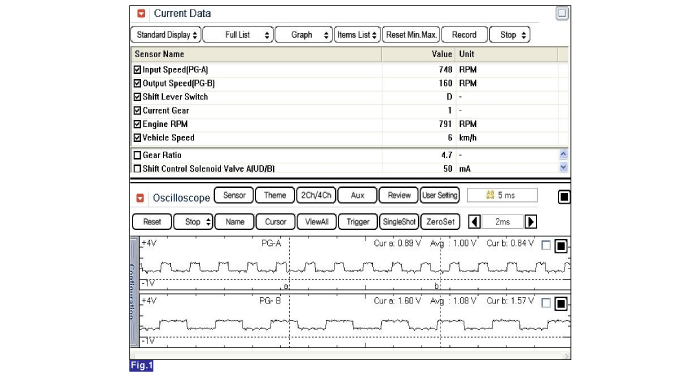

Fig 1) Input/Output speed sensor at low speed

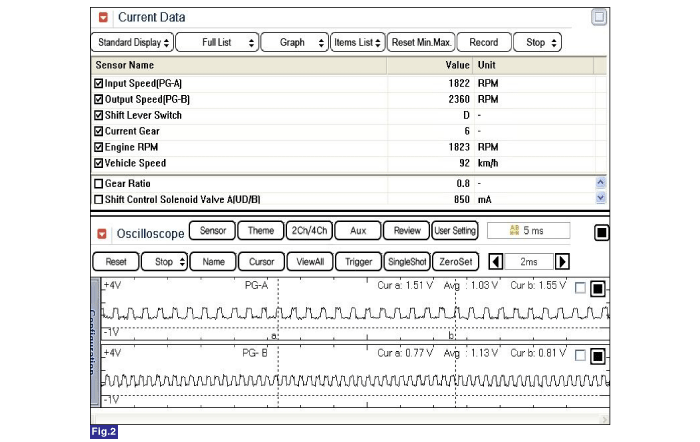

Fig 2) Input/Output speed sensor at high speed
Output Speed Sensor Schematic Diagrams
Circuit Diagram ...

Output Speed Sensor Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") 3. Disconnect the solenoid valve connector (A). 4. M ...
